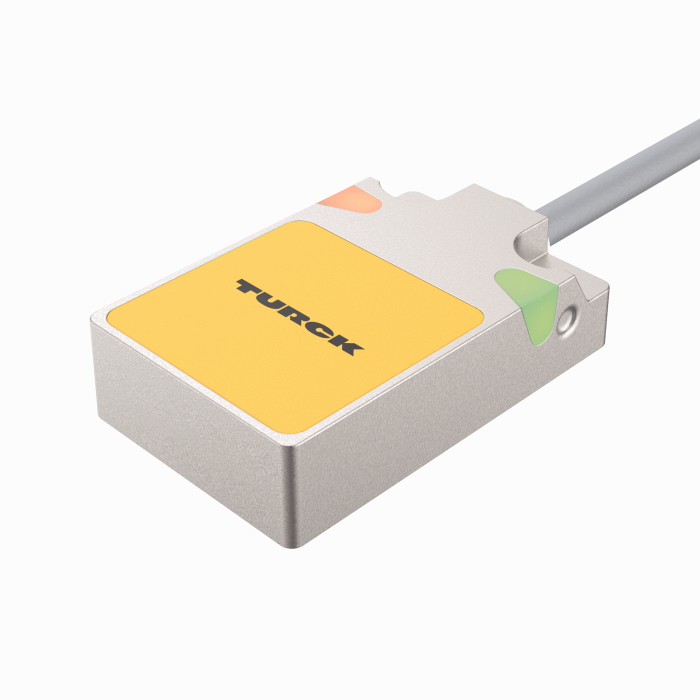

Product  BI5-Q08-VP6X2

Inductive Sensor

Ident. no.: 16001
    • Rectangular, height 8 mm
    • Active face on top
    • Metal, Zamak, nickel-plated
    • DC 4-wire, 10…30 VDC
    • Changeover contact, PNP output
    • Cable connection

General data

EAN 4047101145892
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019900
Country of origin CH
Weight 38 g

Technical Data

Design Rectangular

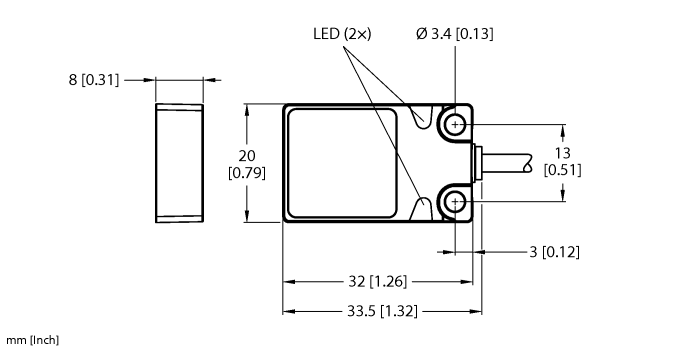

Construction size 32 x 20 x 8 mm, Q08
Rated switching distance 5 mm
Mounting Flush
Operating voltage 10…30 VDC
Output function Complementary contact, PNP
Switching frequency 0.50 kHz
Electrical connection Cable
Cable length (L) 2.0  m
Housing material Metal, Zamak, Nickel Plated
Ambient temperature -25…+70 °C
Protection class IP68
