Product  BI15U-Q20-AP6X2-H1141

Inductive Sensor

Ident. no.: 1608600
    • Rectangular, height 20 mm
    • Active face on top
    • Plastic, PBT-GF30-V0
    • Factor 1 for all metals
    • Resistant to magnetic fields
    • Extended temperature range
    • High switching frequency
    • DC 3-wire, 10…30 VDC
    • NO contact, PNP output
    • M12 x 1 male connector
#

General data

EAN 4047101077988
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019000
Country of origin DE
Weight 93 g

Technical Data

Design Rectangular

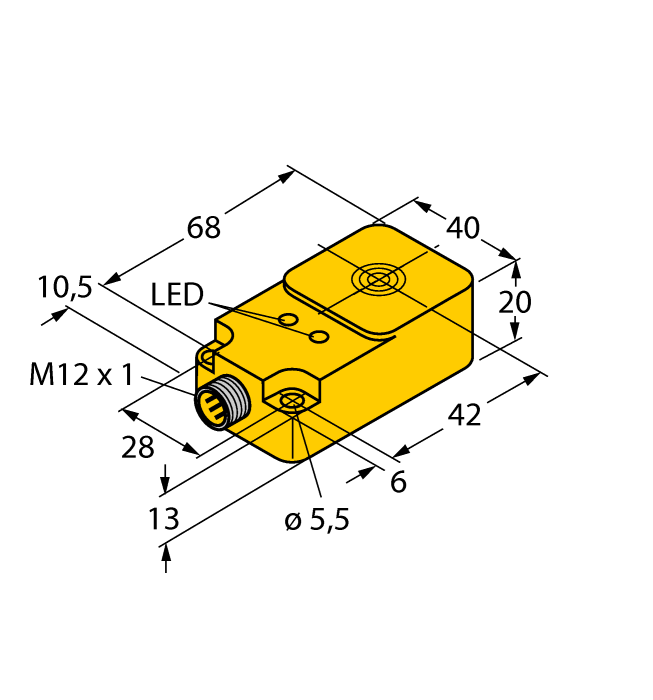

Construction size 68 x 40 x 20 mm, Q20
Rated switching distance 15 mm
Mounting Flush
Operating voltage 10…30 VDC
Output function NO contact, PNP
Switching frequency 0.250 kHz
Electrical connection Connector, M12 × 1
Housing material Plastic, PBT-GF30-V0
Ambient temperature -30…+85 °C
Protection class IP67
Special features uprox+, Factor 1, Resistant to magnetic fields
