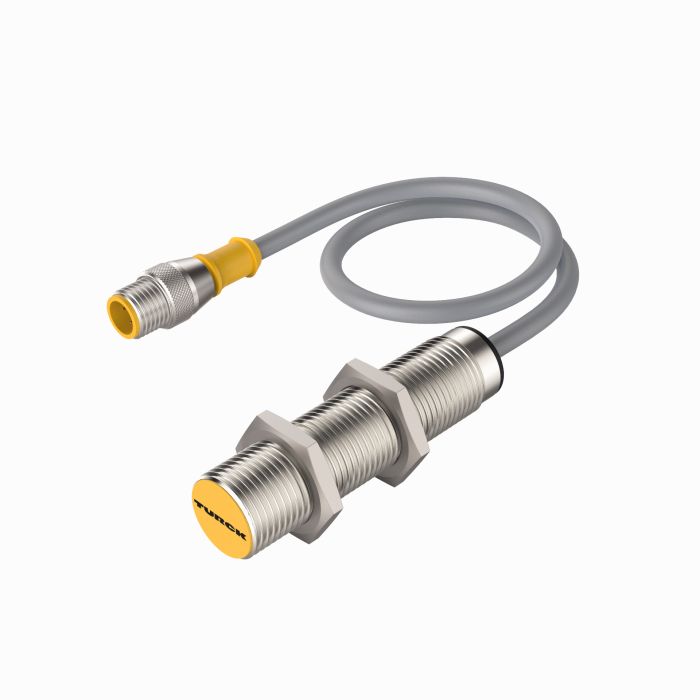

Product BC5-M18-AP4X-0.2-RS4T
Capacitive Sensor
Ident. no.: 2504090- Threaded barrel, M18 x 1
- Chrome-plated brass
- Fine adjustment via potentiometer
- DC 3-wire, 10…65 VDC
- NO contact, PNP output
- Cable with connector, M12 × 1
General data
| eCl@ss-Code (V5.1.4): | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | US |
| Weight | 81.03 g |
Technical Data
| Design | Threaded barrel |
| Construction size | M18 x 1 |
| Rated switching distance | 5 mm |
| Output function | NO contact, PNP |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length (L) | 0.20 m |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67 |
Approval/Declaration
CAD File
CAD STP File
Catalog
Catalog (CAT)
Individual data sheet
Product Catalog Pages
Product Overview
Mounting accessories
|

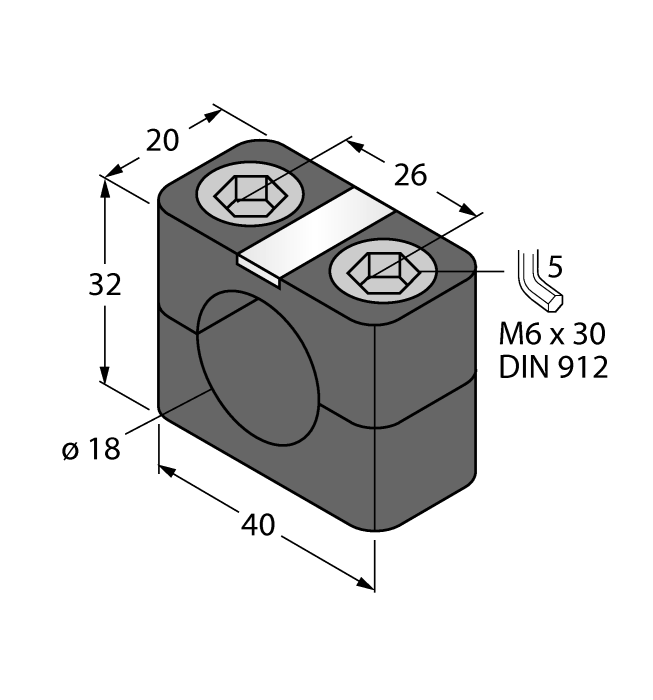

BS 18
Mounting clamp for threaded barrel sensors; material: PA66-GF |
69471 |
|

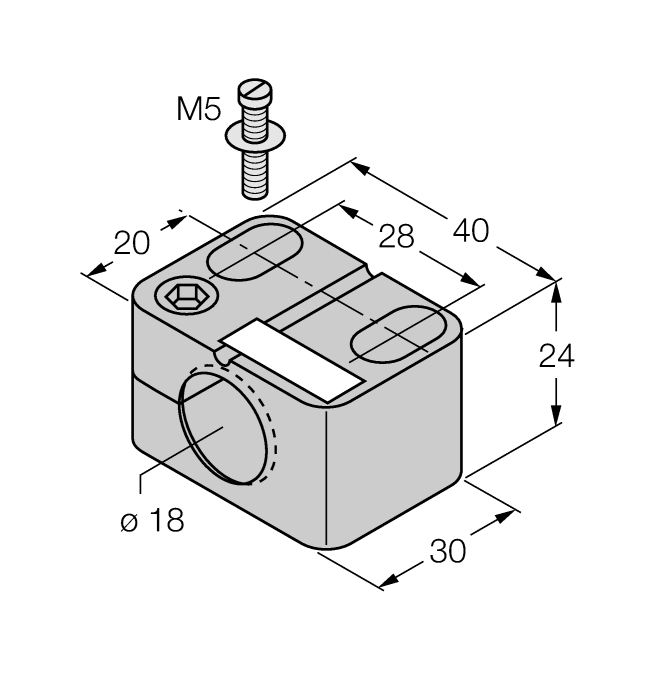

BSN 18
Mounting clamp for threaded barrel sensors; material: PA66-GF |
69472 |
|

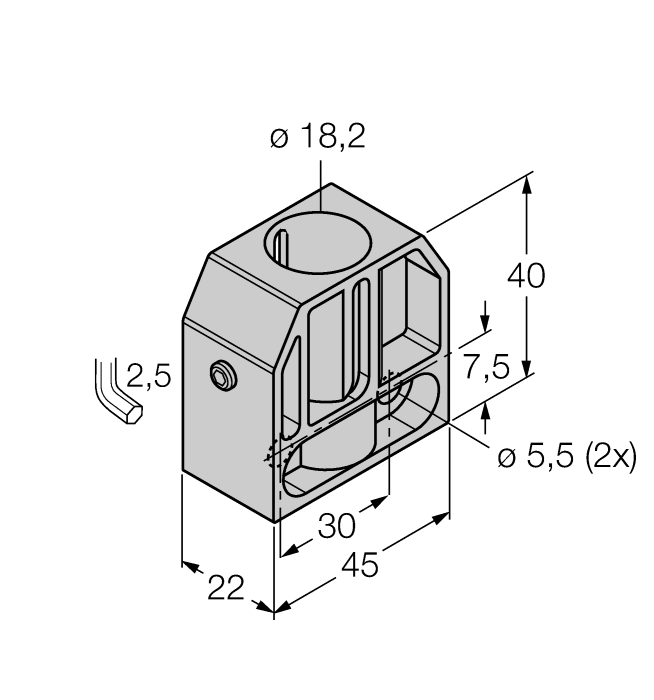

BST-18B
Mounting clamp for threaded barrel sensors, with dead-stop; material: PA6 |
6947214 |
|

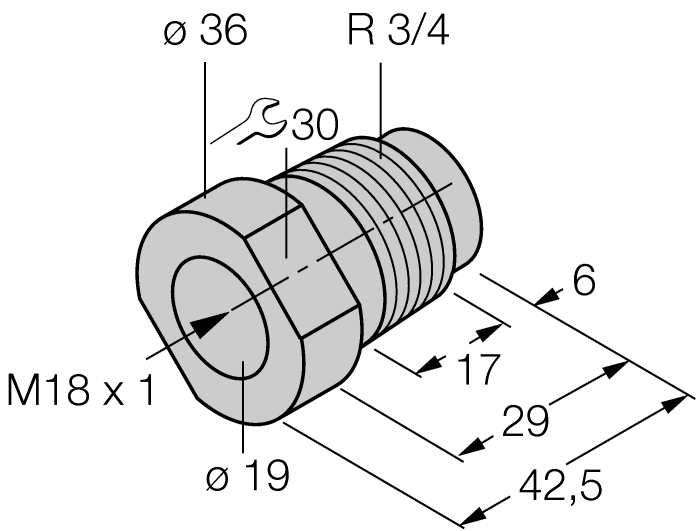

MAP-M18
Mounting adapter; material: Polypropylene; sensor replacement with filled container possible (adapter remains in container during sensor replacement) |
6950012 |
