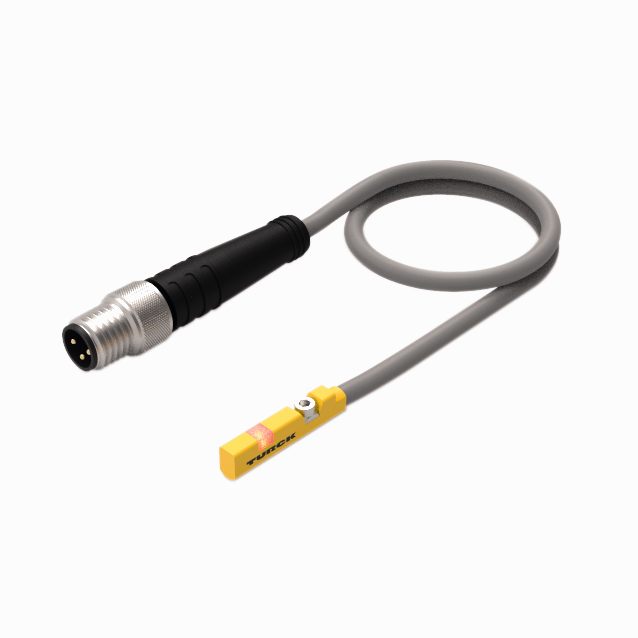

Product BIM-UNR-AP6X-1-PSG3M W/M
Magnetic Field Sensor
For Pneumatic Cylinders
Ident. no.: 46858435- For C-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylindrical housings.
- One-hand mounting possible
- Stable mounting
- Magneto-resistive sensor
- DC 3-wire, 11…30 VDC
- NO contact, PNP output

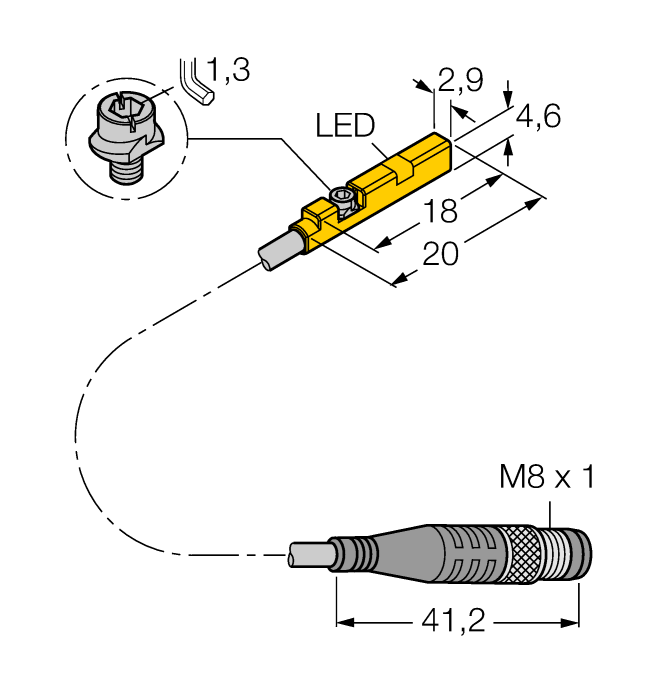

- Pigtail with M8 × 1 male connector

Data Sheets
CAD File
CAD STP File
Product Flyer
Mounting accessories
![]() |
KLR2-UNR
Mounting bracket for mounting magnetic field sensors on round cylinders |
100000596 |
![]() |
ASB-4
Clip collar for mounting brackets for magnetic field sensors on round cylinders; cylinder diameter: 28…39 mm; other lengths are available under designations ASB-1 to ASB-9 |
6965104 |
