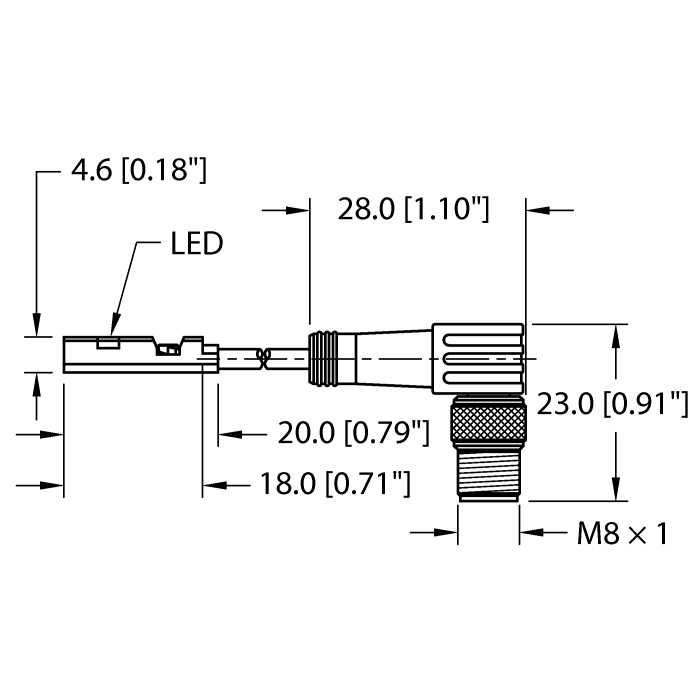

Product BIM-UNR-AP6X-1-PSW3M W/M
Magnetic Field Sensor
For Pneumatic Cylinders
Ident. no.: 4685885- For C-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylindrical housings.
- One-hand mounting possible
- Stable mounting
- Magneto-resistive sensor
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end, M8 x 1
