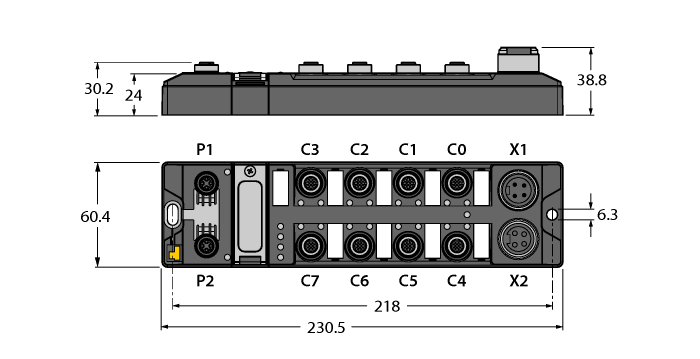

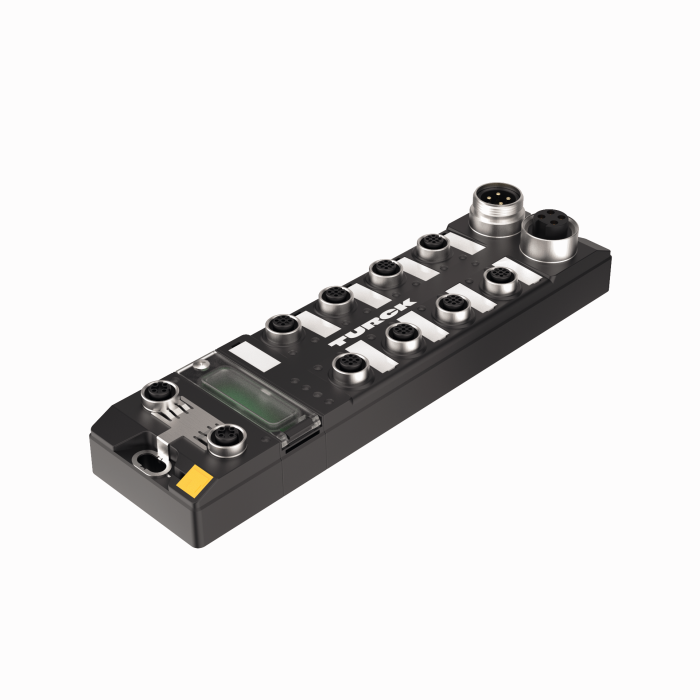

Product TBEN-LG-16DIP
Compact multiprotocol I/O module for Ethernet
16 Digital PNP Inputs
Ident. no.: 6814065- PROFINET device, EtherNet/IP device or Modbus TCP slave
- Integrated Ethernet switch
- Supports 10 Mbps / 100 Mbps
- 2x M12, 4-pin, D-coded, Ethernet fieldbus connection
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- 4-pin 7/8″ male connector for power supply
- Galvanically isolated voltage groups support passive safety
- Input diagnostics per port
- Dieser Artikel darf nur für GM-Projekte verwendet werden!
Data Sheets
CAD File
Configuration File
Configuration Software
EPLAN Electric P8
Manual
Manufacturer's Declaration
Technical Support Document (TSD)
Connectivity accessories — Power supply
|
RSM RKM 40-2M
Power supply cable, 7/8” connector, straight, 4-pin to 7/8” female connector, straight, 4-pin, cable length: 2 m, jacket material: PVC, yellow; other cable lengths and qualities available, see www.turck.com |
U2280-0 |
Connectivity accessories — I/O
|
EKRT-ESRT-A4.300-GC2K-2
Actuator and Sensor Cordset, Extension Cable, M12, Female, Straight, 3-pin, Torque sleeve, M12, Male, Straight, 3-pin, Torque sleeve, Cable length: 2 m, Cable jacket: PVC, Black, other cable lengths and qualities available, see www.turck.com |
100013890 |
|
|
EKRT-ESRT-A4.400-GC2K-2
Actuator and Sensor Cordset, Extension Cable, M12, Female, Straight, 4-pin, Torque sleeve, M12, Male, Straight, 4-pin, Torque sleeve, Cable length: 2 m, Cable jacket: PVC, Black, other cable lengths and qualities available, see www.turck.com |
UX19102 |
|
|
EKRT-ESRT-A5.500-GC2K-2
Actuator and Sensor Cordset, Extension Cable, M12, Female, Straight, 5-pin, Torque sleeve, M12, Male, Straight, 5-pin, Torque sleeve, Cable length: 2 m, Cable jacket: PVC, Black, other cable lengths and qualities available, see www.turck.com |
UX19110 |
Connectivity accessories — Network
|
RSSD RSSD 441-2M
Cable for Industrial Ethernet, M12 male connector, D-coded, straight to M12 male connector, D-coded, straight, cable length: 2 m, jacket material: TPE, turquoise |
U-02482 |
|
RSSD RJ45 441-2M
Cable for Industrial Ethernet, M12 male connector, D-coded, straight to RJ45 male connector, straight, cable length: 2 m, jacket material: TPE, turquoise |
U-08880 |
