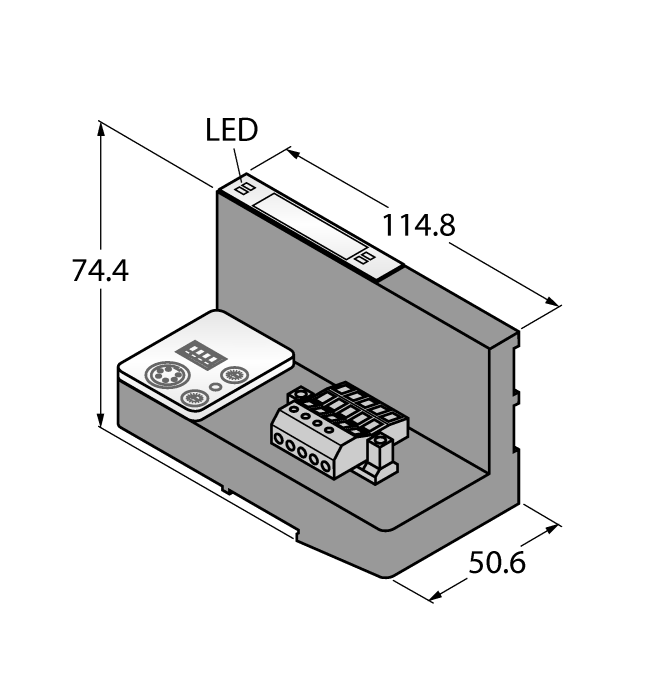

Product BL20-GW-DNET
Gateway for the BL20 I/O System
Interface for DeviceNet, Without Own Supply
Additional Bus Refreshing Module Required
Ident. no.: 6827005- Rotary coding switch to adjust the node address
- Protection class IP20
- 2 x end brackets BL20-WEW35/2-SW
- 1 x end plate BL20-ABPL
- LEDs for display of supply voltage, group and bus errors
- Interface between the BL20 system and DeviceNet™
- 125 / 250 / 500 kbps
- Connection to DeviceNet™ established via Open-Style connector
Data Sheets
CAD File
Firmware
Manufacturer's Declaration
Connectivity accessories
|

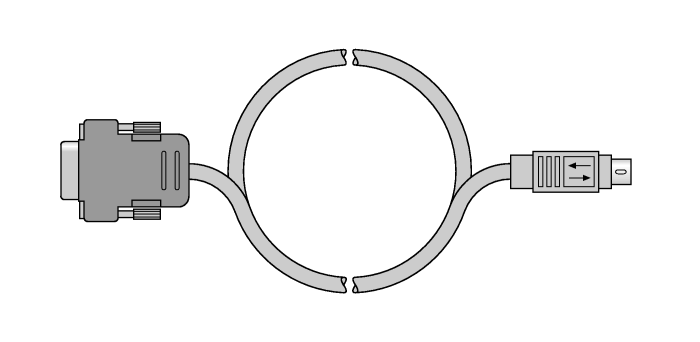

I/O-ASSISTANT-KABEL-BL20/BL67
RS232 service cable for Gateways with PS2 interface |
6827133 |
