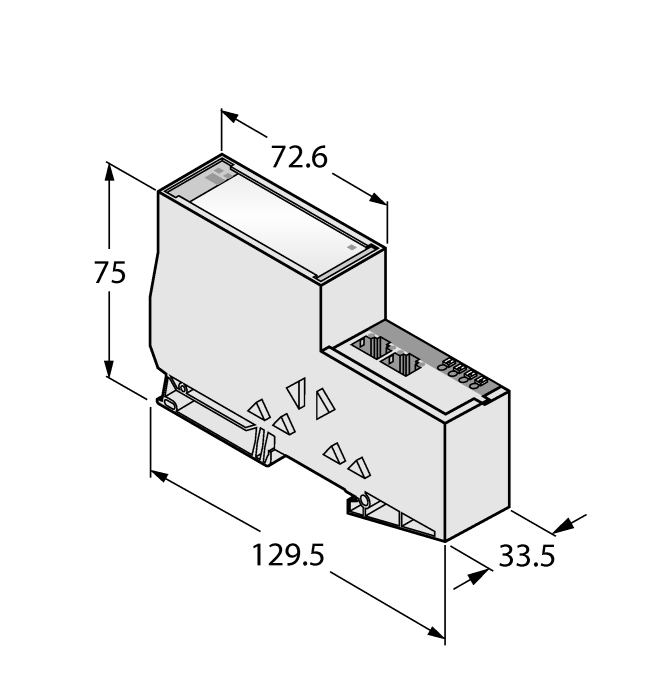

Product BL20-E-GW-EC
Interface for EtherCAT
Ident. no.: 6827380- Protection class IP20
- 2 x end brackets BL20-WEW35/2-SW
- 1 x end plate BL20-ABPL
- LEDs for display of supply voltage, group and bus errors
- Gateway between the BL20 system and EtherCAT
- Modular Device Profile (MDP) supported
- 10/100 Mbps, Auto MDIX
- 2 × RJ45 female
General data
| EAN | 4047101289541 |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85176200000 |
| Country of origin | DE |
| Weight | 162 g |
Technical Data
| Fieldbus Protocol | EtherCAT |
| Device type | Gateway |
| Ambient temperature | 0…+55 °C |
| Protection class | IP20 |
| Approvals | cULus |
Data Sheets
Catalog
Configuration File
Configuration Software
Firmware
Manual
Manufacturer's Declaration
Mounting accessories
|

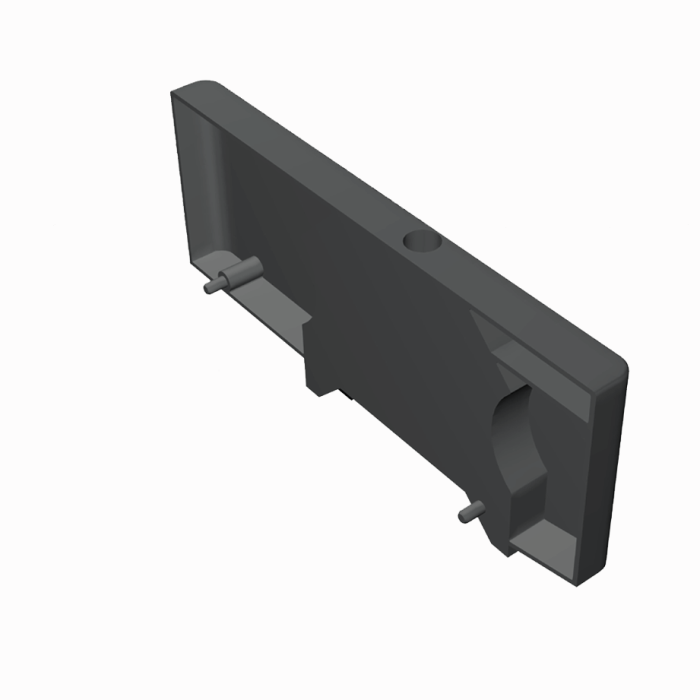

BL20-ABPL (2 PCS.)
End plate for a BL20 station after the last I/O module (2 pieces) |
6827123 |
|

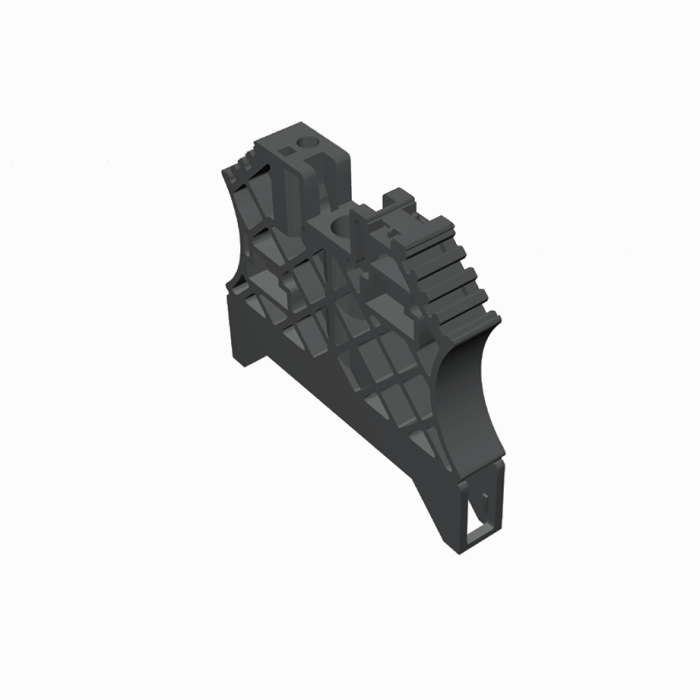

BL20-WEW-35/2-SW (10 PCS.)
End bracket for fixation of a BL20 station (10 pieces) |
6827124 |
