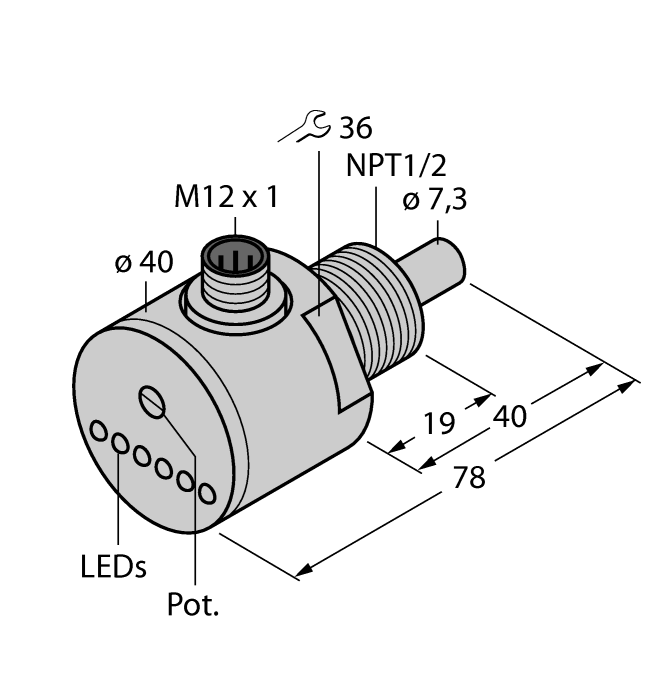

Product  FCS-N1/2A4-AP8X-H1141

Flow Monitoring

Immersion Sensor with Integrated Processor

Ident. no.: 6871004
    • Sensor for liquid media
    • Calorimetric principle
    • Adjustment via potentiometer
    • Status indicated via LED chain
    • DC 3-wire, 19.2…28.8 VDC
    • NO contact, PNP output
    • Connector device, M12 × 1

General data

EAN 4047101175349
eCl@ss-Code (V5.1.4): 27273190 -/- Flow meter (not classified)
Customs tariff number 90261021000
Country of origin DE
Weight 303 g

Technical Data

Function Flow monitoring
Design Immersion
Process connection 1/2″ NPT
Medium liquids
Detection type Calorimetric
Operating voltage 19.2…28.8 VDC
Output function NO contact, PNP
Electrical connection Connector, M12 × 1
Sensor material Stainless steel
Housing material Stainless steel, 1.4571 (AISI 316Ti)
Medium temperature -20…+80 °C
Ambient temperature -20…+80 °C
Protection class IP67
Approvals UL
