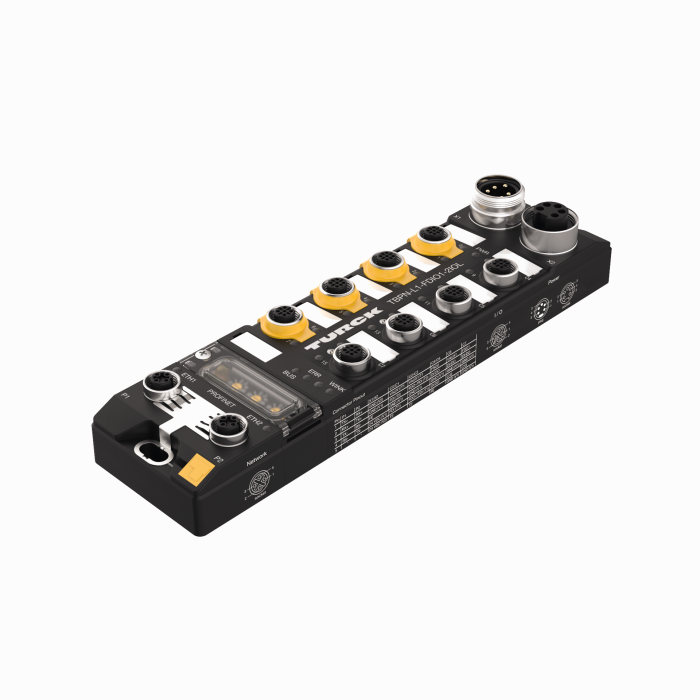

Product  TBPN-L1-FDIO1-2IOL

Compact PROFIsafe / PROFINET Block I/O Module

Safe Digital Inputs and Outputs, Standard Universal Digital Channels, IO-Link Master Ports

Ident. no.: 6814053
    • Compact PROFINET Profisafe Block I/O Module
    • 5-pin power supply
    • 2 safe digital inputs
    • 2 safe universal digital inputs or outputs
    • 4 universal digital inputs or outputs
    • 2 IO-Link master ports Class A
    • Integrated Ethernet switch allows line topology
    • 2 × M12, 4-pin, D-coded Ethernet fieldbus connection
    • 7/8", 5-pin connector for power supply
    • Glass fiber reinforced housing
    • Shock and vibration tested
    • Fully potted module electronics
    • Protection classes IP65, IP67, IP69K
#

General data

EAN 4047101354010
eCl@ss-Code (V5.1.4): 27250302 -/- Digital I/O module (periphery)
Customs tariff number 85369095000
Country of origin DE
Weight 640 g

Technical Data

Fieldbus Protocol PROFIsafe via PROFINET
Signal type Fail-safe inputs, Fail-safe inputs and outputs, Digital input/output, IO-Link
Connection technology signal M12
Product Family Safety I/O Modules
Device type I/O Module, Compact station
Protection class IP65/IP67/IP69K
Approvals cULus
Ambient temperature -40…+70 °C

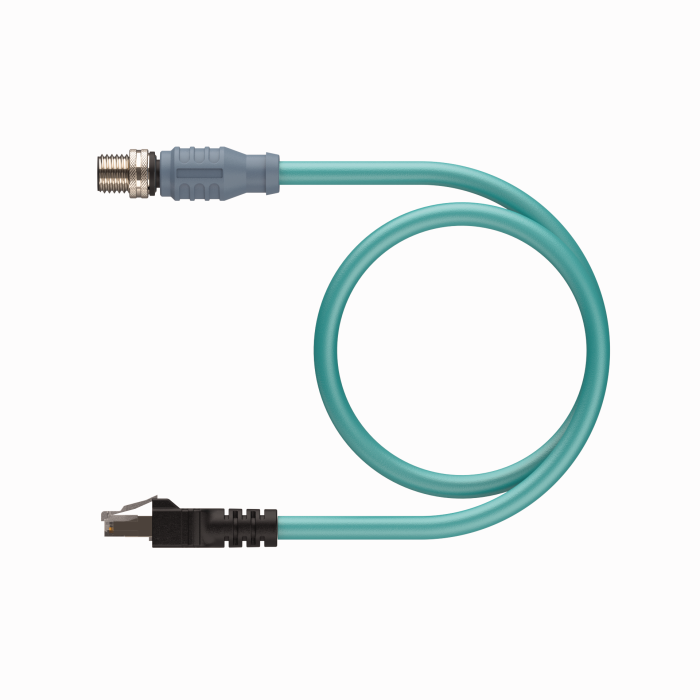

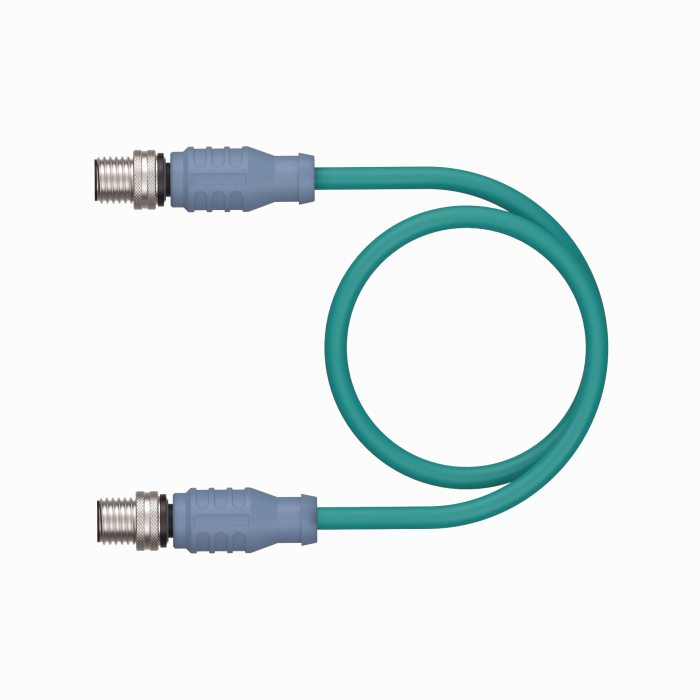

Connectivity accessories — Network

ESRT-A4.300-GC2K-2
