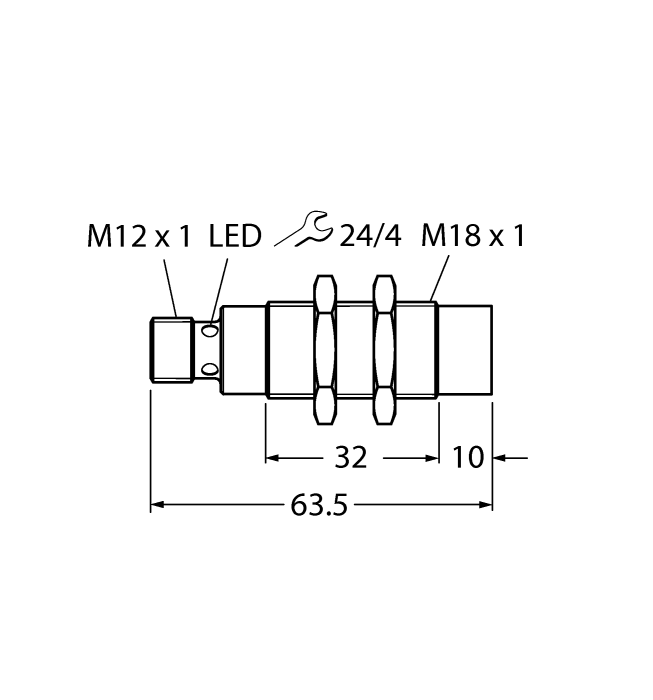

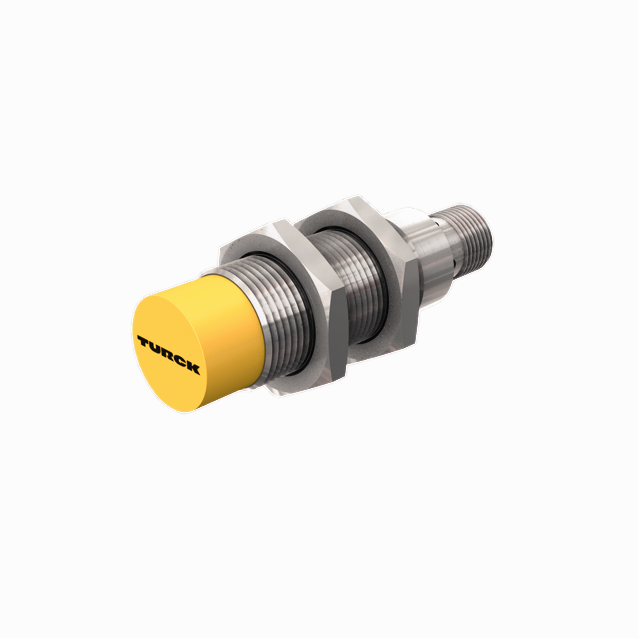

Product TN-M18-IOL-H1141
HF Read/Write Head
IO-Link
Ident. no.: 100000974- Threaded barrel, M18 x 1
- Chrome-plated brass
- Process value in 32 bit IO-Link telegram
- M12 × 1 male connector, 4-pin
General data
| EAN | 4047101446166 |
| eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
| Customs tariff number | 84719000000 |
| Country of origin | CH |
| Weight | 63 g |
Technical Data
| Technology | HF RFID |
| Radio communication and protocol standards | ISO 15693, NFC Typ 5 |
| Design | Threaded barrel |
| Construction size | M18 x 1 |
| Read/Write distance max. | 36 mm |
| Mounting | Non-flush |
| Fieldbus Protocol | IO-Link |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Data Sheets
Configuration File
Configuration Manual
Configuration Software
Instructions for Use
Manual
Quick Start Guide
Mounting accessories
|

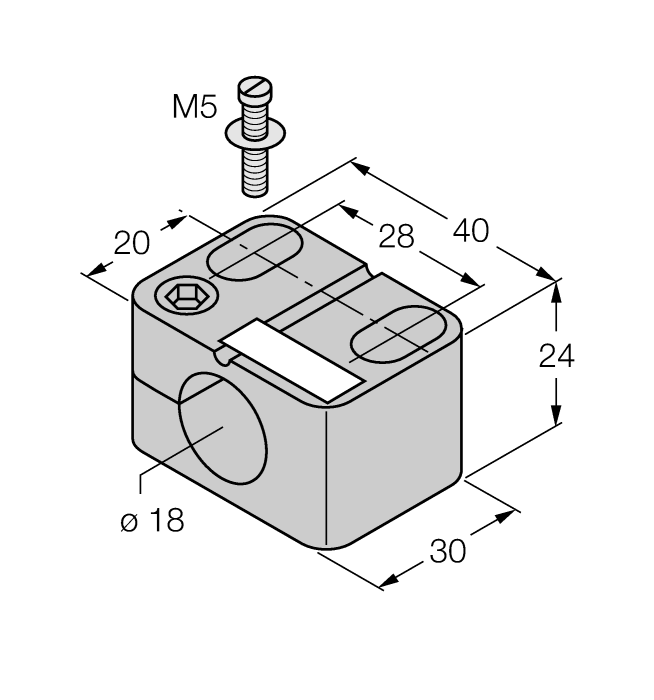

BSN 18
Mounting clamp for threaded barrel sensors; material: PA66-GF |
69472 |
|

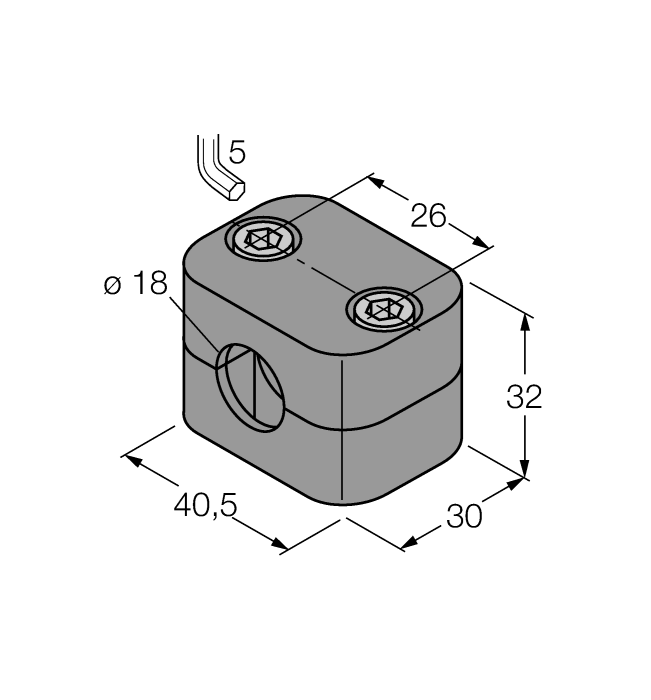

BST-18N
Mounting clamp for threaded barrel sensors, without dead-stop; material: PA6 |
6947215 |
|

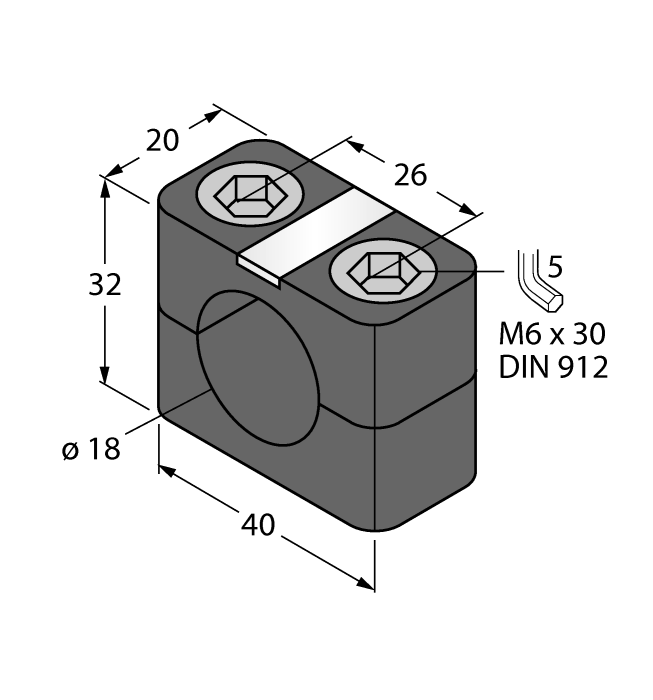

BST-18B
Mounting clamp for threaded barrel sensors, with dead-stop; material: PA6 |
6947214 |
|
BSS-18
Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene |
6901320 |
Functional accessories
|

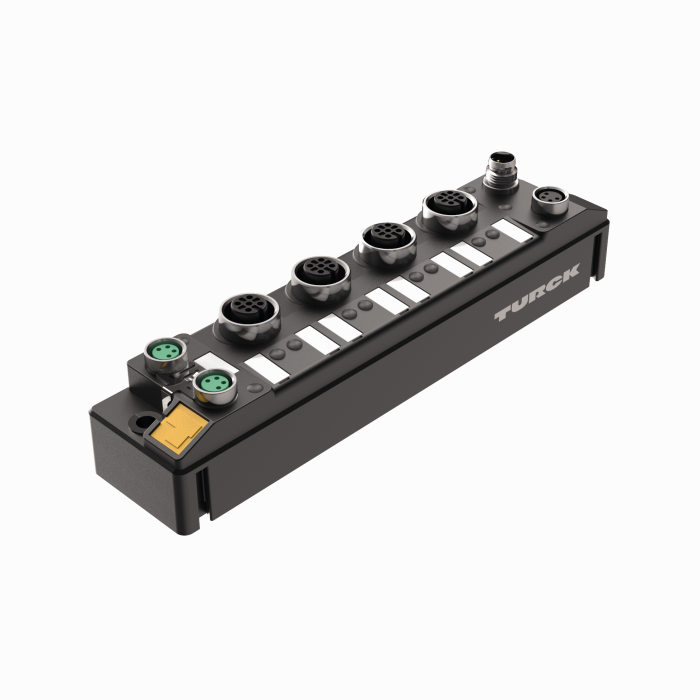

TBEN-S2-4IOL
Compact multiprotocol I/O module, 4 IO-Link Master 1.1 Class A, 4 universal PNP digital channels 0.5 A |
6814024 |
