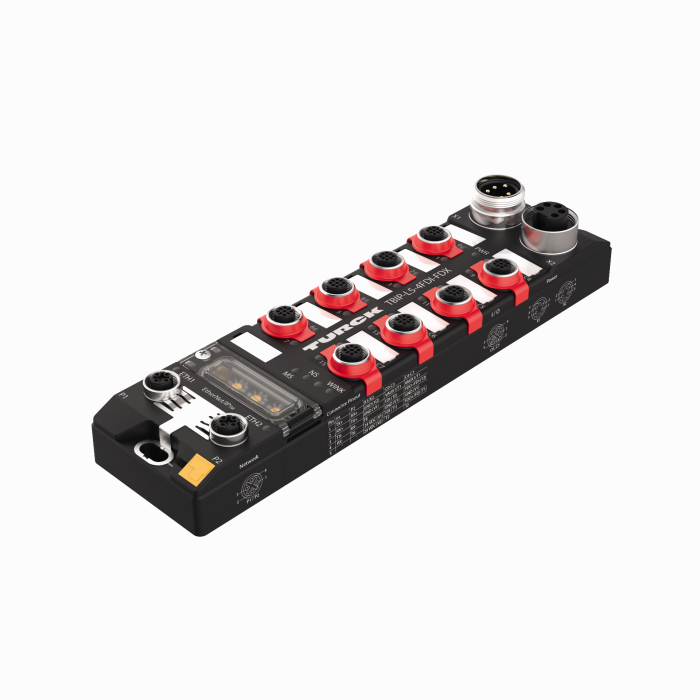

Product  TBIP-L5-4FDI-4FDX

Block Module for EtherNet/IP and CIP Safety

Safe Digital Inputs and Outputs

Ident. no.: 100001828
    • Ethernet/IP device
    • Integrated Ethernet switch
    • 10 Mbps/100 Mbps supported
    • 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
    • Glass fiber reinforced housing
    • Shock and vibration tested
    • Fully potted module electronics
    • Protection classes IP65, IP67, IP69K
    • 5-pin 7/8″ male connector for power supply
    • ATEX zone 2/22
    • CCC-Ex
    • Four secure digital SIL3 inputs
    • Four secure configurable digital SIL3 inputs or outputs
#
Hide All Open All

General data

EAN 4047101453645
eCl@ss-Code (V5.1.4): 27250302 -/- Digital I/O module (periphery)
Customs tariff number 8517620020
Country of origin DE
Weight 653 g

Technical Data

Fieldbus Protocol CIP safety via EtherNet/IP
Signal type Fail-safe inputs, Fail-safe inputs and outputs
Connection technology signal M12
Device type I/O Module, Compact station
Fieldbus transmission rate 10/100 Mbps
Fieldbus connection technology 2 x M12, 4-pin, D-coded
Ambient temperature -40…+70 °C
Protection class IP65/IP67/IP69K
Approvals ATEX Zone 2/22, cULus, IECEx, CCC

Mounting accessories

TB-SG-L

Protective housing for TBEN-L and TBIL-M block I/O modules for use in ATEX Zone 2/22

 100014865

Connectivity accessories — Network

RSSD RSSD 441-2M

Cable for Industrial Ethernet, M12 male connector, D-coded, straight to M12 male connector, D-coded, straight, cable length: 2 m, jacket material: TPE, turquoise

 U-02482
RSSD RJ45 441-2M

Cable for Industrial Ethernet, M12 male connector, D-coded, straight to RJ45 male connector, straight, cable length: 2 m, jacket material: TPE, turquoise

 U-08880
