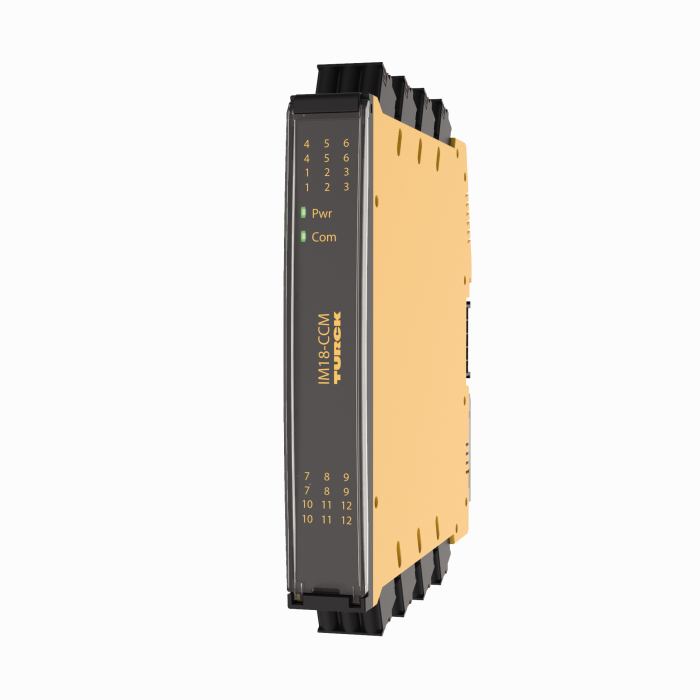

Product IM18-CCM51-12I
Current measurement module
Ident. no.: 100027058- Connection of up to 12 AC current sensors
- Evaluation of current sensors up to max. 600 A
- Can be operated in conjunction with the IM18-CCM50-MTI/24VDC and IM18-CCM60-MTI/24VDC
- Communication and supply via backplane bus
- DIN rail mounting according to DIN Rail EN 60715
- For measuring transformers in the CCT product series from TDK
General data
| EAN | 4047101538373 |
| Customs tariff number | 85371098990 |
| Country of origin | DE |
| Weight | 219 g |
Technical Data
| Device type | Cabinet guard |
| Nominal voltage | 24 VDC |
| Electrical connection | Removable spring-type terminals, 3-pin |
| Protection class | IP20 |
| Product series | IM18 |
