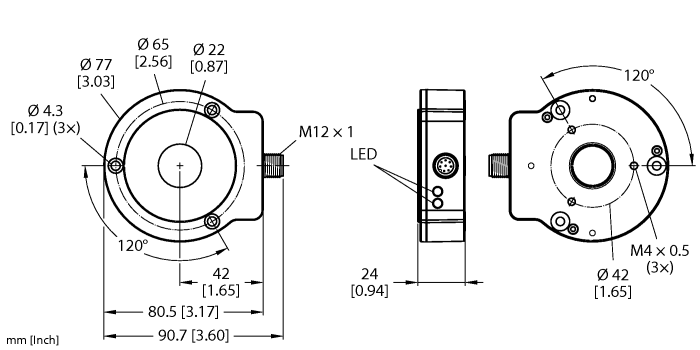

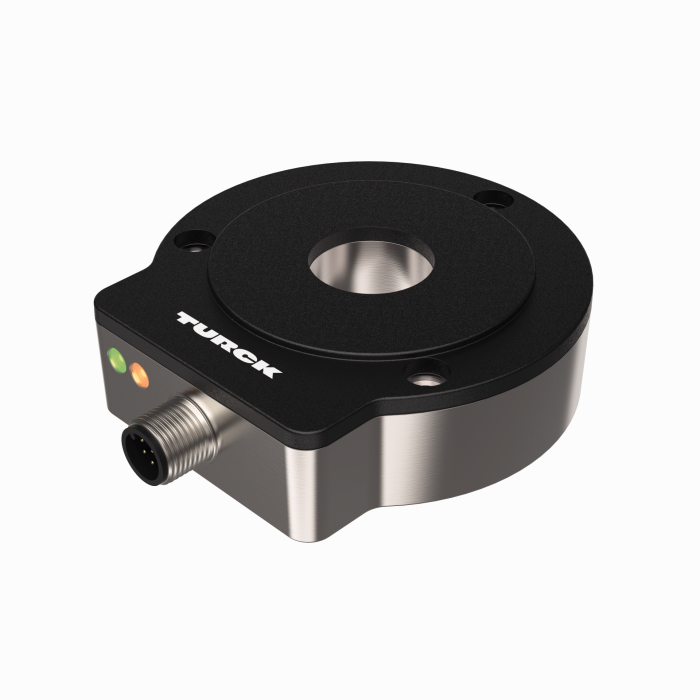

Product RI360P0-EQR24M0-INCRX2-H1181
Contactless Encoder with Stainless Steel Housing
Incremental: 1 … 5000 ppr
Premium Line
Ident. no.: 1590912- Compact, rugged housing
- Active face, plastic PA12-GF30
- Housing, stainless steel V4A (1.4404)
- Status displayed via LED
- Immune to electromagnetic interference
- 1024 pulses per revolution (default)
- 360, 512, 1000, 1024, 2048, 2500, 3600, 4096, parametr. via Easy-Teach
- Free parametrization of the pulse number in the range from 1 to 5000 via PACTware
- Position of z-track set via Easy-Teach
- Burst function, absolute angular position output incrementally per Easy-Teach pulse
- 10…30 VDC
- Male M12 x 1, 8-pin
- Push-pull A, B, Z, A (inverse), B (inverse)

General data
EAN | 4047101313932 |
eCl@ss-Code (V5.1.4): | 27270502 -/- Encoder, incremental |
Customs tariff number | 90318080000 |
Country of origin | DE |
Weight | 379 g |
Technical Data
Encoder line | Premium-Line |
Technology | Contactless |
Output type | Incremental |
Shaft Type | Hollow shaft |
Shaft diameter D (mm) | 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20 |
Construction size | 81 x 78 x 24 mm |
Flange type | Flange without mounting element |
Resolution, incremental | 1024 ppr |
Operating voltage | 10…30 VDC |
Output function | Push-Pull/HTL |
Electrical connection | Connector, M12 × 1 |
Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/PA12-GF30 |
Ambient temperature | -25…+85 °C |
Protection class | IP68/IP69K |
Data Sheets
Approval/Declaration
CAD File
Catalog
Configuration File
Configuration Software
IODD DTM configurator | 33194 KB |
PACTware 4 without HART-Com DTM and help texts | 4755 KB |
DTM for USB IO-Link master 1.1 | 4440 KB |
Manual
Product Catalog
Mounting accessories
![]() |

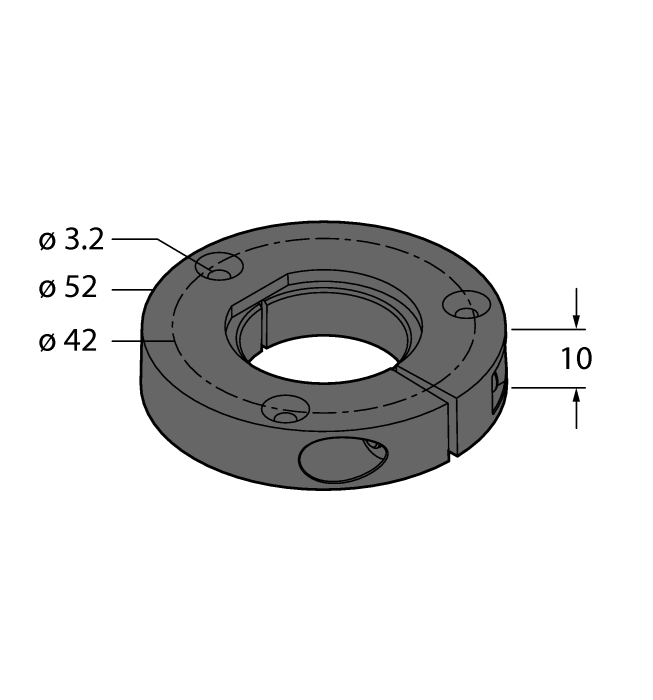

PE1-EQR24
Positioning element with stainless steel compression fitting, without adapter sleeve |
1590966 |
![]() |
M5-QR24
Plastic protecting ring for encoders RI-EQR24 |
1590965 |
![]() |
RA1-EQR24

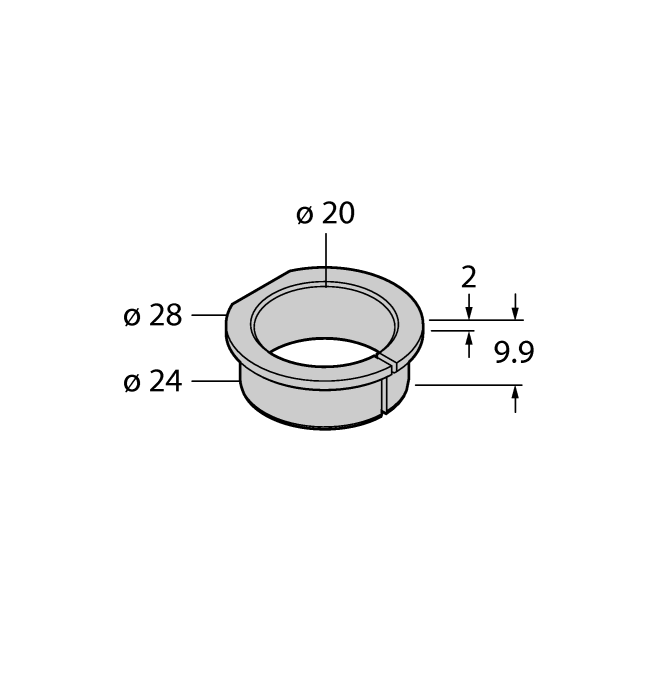

Stainless steel adapter sleeve, for Ø 20 mm shafts |
1593019 |
![]() |
RA3-EQR24

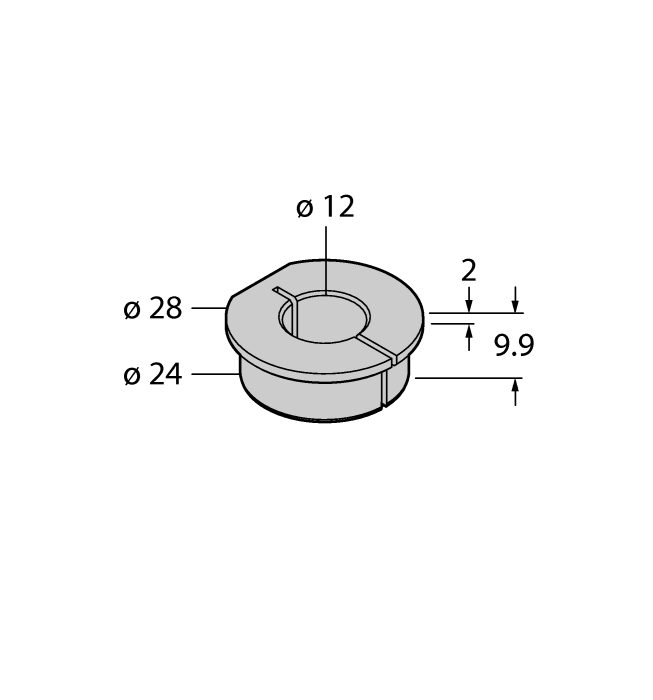

Stainless steel adapter sleeve, for Ø 12 mm shafts |
1593020 |
![]() |
RA4-EQR24

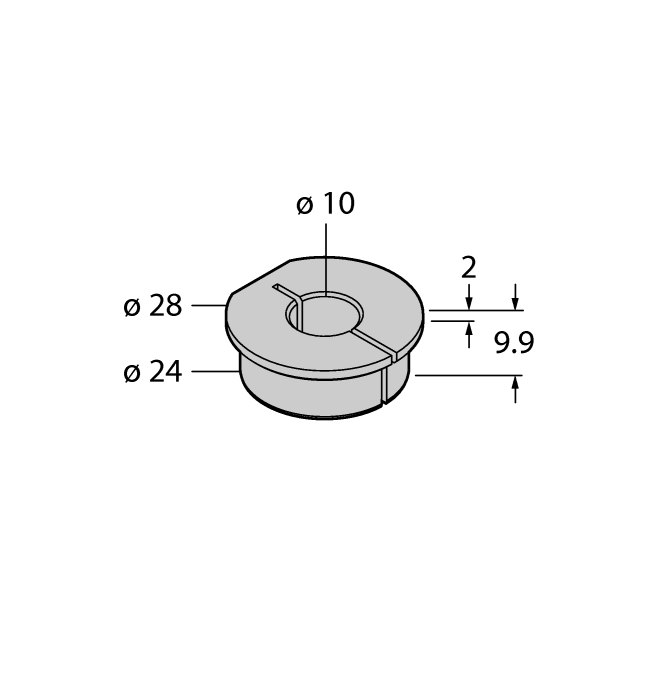

Stainless steel adapter sleeve, for Ø 10 mm shafts |
1593023 |
![]() |

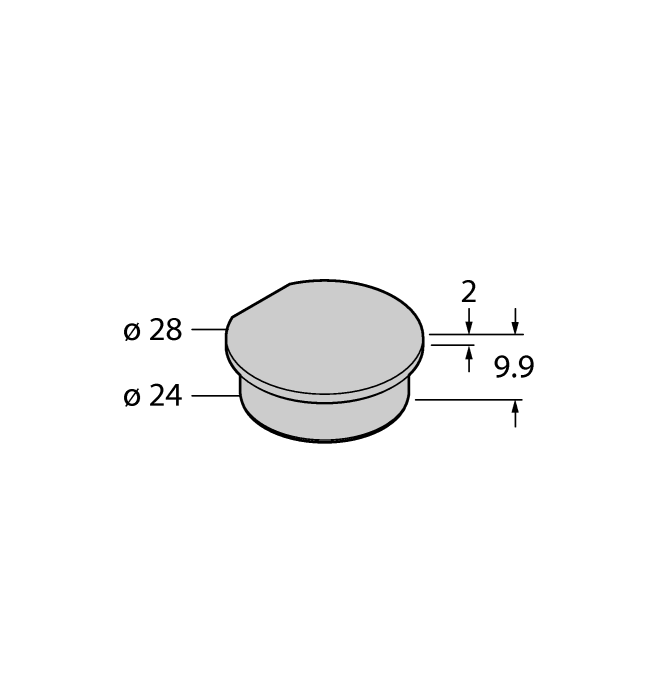

RA8-EQR24
Stainless steel plug for mounting option C |
100000289 |
Functional accessories
![]() |
USB-2-IOL-0002
IO-Link Master with integrated USB port |
6825482 |
![]() |
TX2-Q20L60
Teach adapter for inductive encoders with 8-pin male M12 x 1, for simple programming via Easy Teach |
6967117 |
