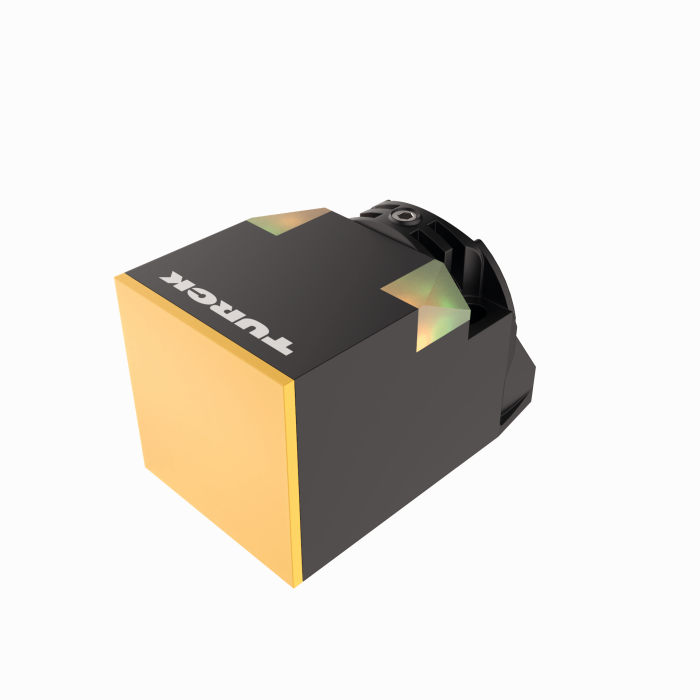

Product  NI50U-CK40-AP6X2-H1141 w/BS4

Inductive Sensor

With Extended Switching Distance

Ident. no.: 1625868
    • Rectangular, height 40 mm
    • Variable orientation of active face in 5 directions
    • Plastic, PBT‐GF30‐V0
    • High luminance corner LEDs
    • Optimum view on supply voltage and switching state from any position
    • Factor 1 for all metals
    • Increased switching distance
    • Protection class IP68
    • Resistant to magnetic fields
    • Auto-compensation protects against pre-damping
    • Partially embeddable
    • DC 3-wire, 10…30 VDC
    • NO contact, PNP output
    • M12 x 1 male connector

General data

EAN 4047101225785
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019900
Country of origin DE
Weight 116 g

Technical Data

Design Rectangular

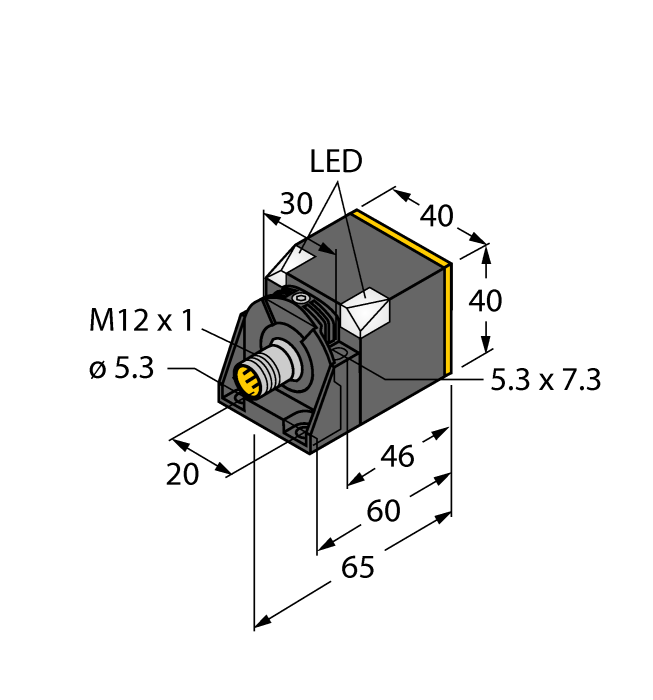

Construction size 65 x 40 x 40 mm, CK40
Rated switching distance 50 mm
Mounting Non-flush
Operating voltage 10…30 VDC
Output function NO contact, PNP
Switching frequency 0.250 kHz
Electrical connection Connector, M12 × 1
Housing material Plastic, PBT-GF20-V0, Black
Ambient temperature -30…+85 °C
Protection class IP68
Special features uprox+, Factor 1, Resistant to magnetic fields

Data Sheets

CAD File

Catalog (CAT)

Product Catalog Pages

Quick Start Guide

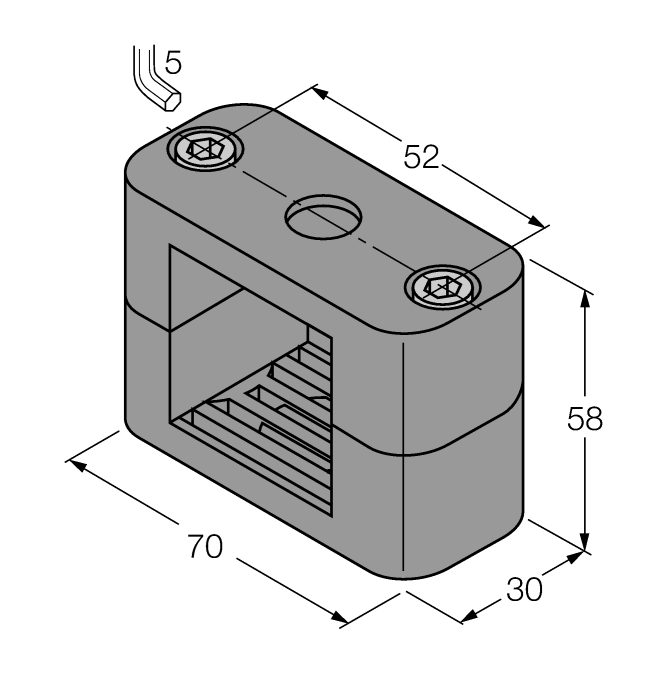

Mounting accessories
