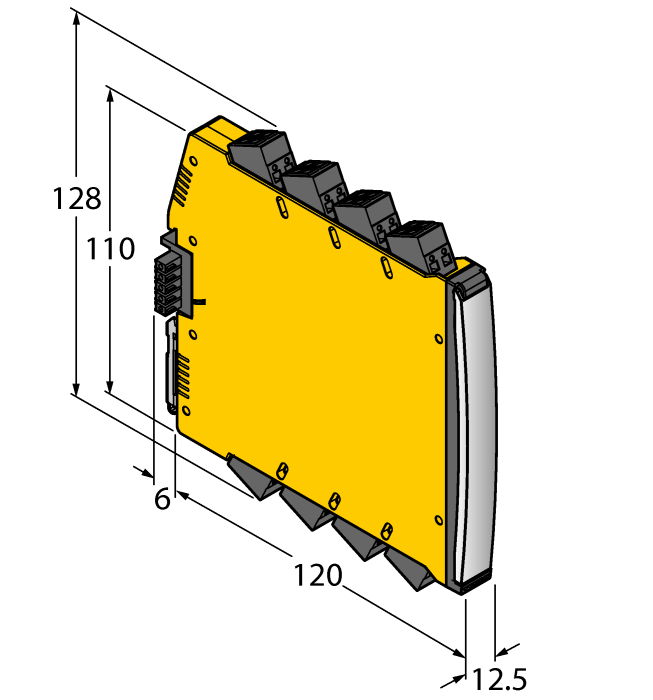

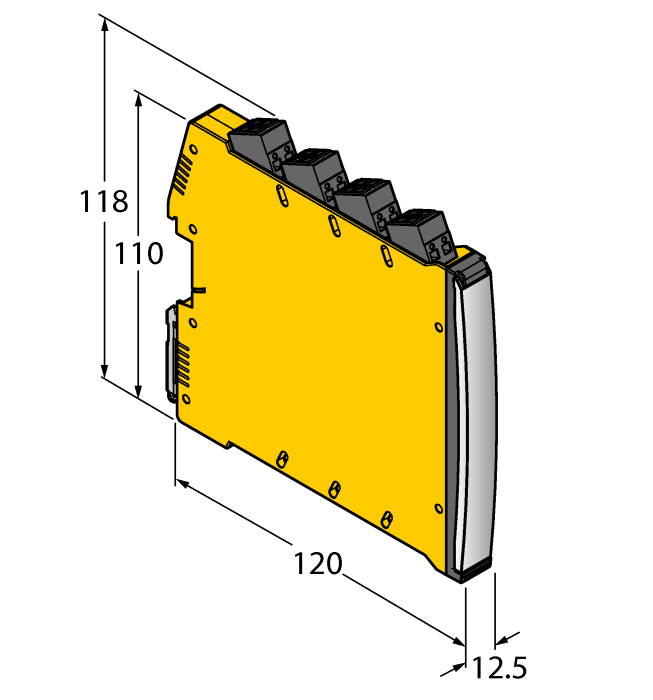

Product IMX12-DI03-1S-1NAM1R-PR/24VDC/CC
Isolating switching amplifier
1-channel
Ident. no.: 7580003- Relay output (changeover)
- NAMUR Repeater
- Output mode adjustable (NO/NC mode)
- Input circuits monitored for wire-break/short-circuit (ON/OFF switchable)
- Complete galvanic isolation
- Input reverse-polarity protected
- Removable spring type terminals
- Power bridge (connector incl. in delivery)
- ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS
- Use in Zone 2
- SIL 2
General data
| EAN | 4047101310375 |
| eCl@ss-Code (V5.1.4): | 27210121 -/- Isolating switching amplifier |
| Customs tariff number | 85437090990 |
| Country of origin | DE |
| Weight | 161 g |
Technical Data
| Signal type | Digital input |
| Device type | Isolating switching amplifier |
| Ex version | yes |
| Approvals | ATEX, IECEx, NEPSI, KOSHA, TR CU |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | Power bridge 24 VDC |
| Number of channels | 1 |
| Digital output | Namur and relay output |
| Connection variant | Power bridge with collective fault signal |
| Electrical connection | Removable spring-type terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
Data Sheets
Approval
| TÜV 14 ATEX 147004 X | 435 KB |
| cFMus- 0015X | 644 KB |
| IECEx - TUN 14.0040X | 1363 KB |
| UL - IS-1.315 | 207 KB |
| NEPSI - GYJ15.1216 IMX12-DI | 1088 KB |
| Kosha - 16-AV4BO-0199X | 657 KB |
EPLAN Electric P8
EU Declaration of Conformity
Manual
Product Catalog
Product Flyer
Product Overview
Quick Start Guide
Mounting accessories
|

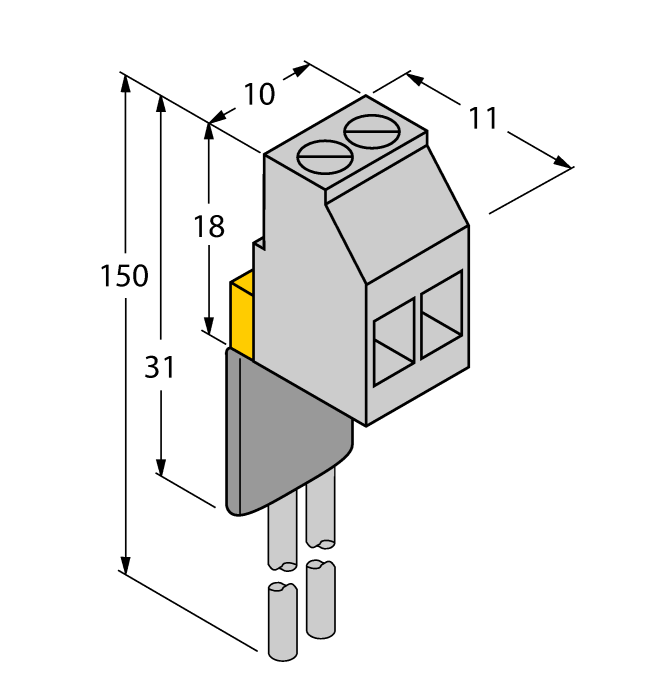

IMC 1.5/ 5-ST-3.81 BK
Power Bridge Connection Terminal |
7580954 |
|

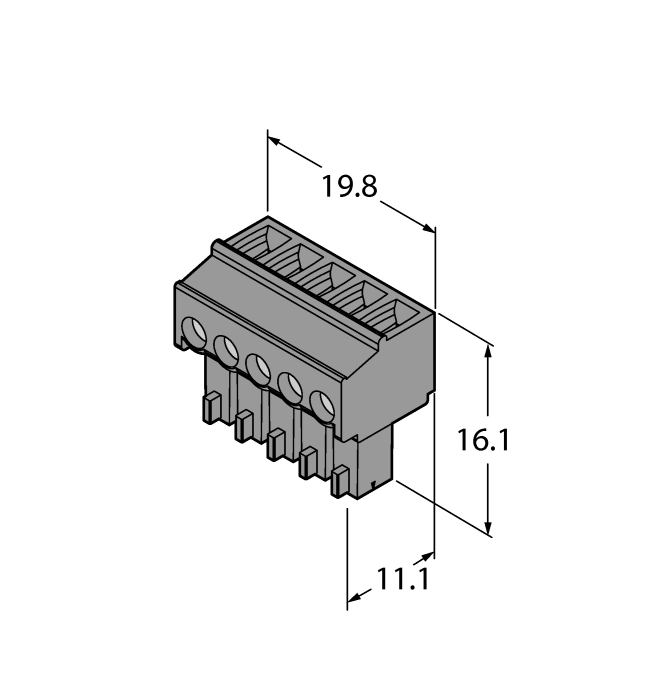

MCVR 1.5/ 5-ST-3.81 BK
Power Bridge Connection Terminal |
7580955 |
|

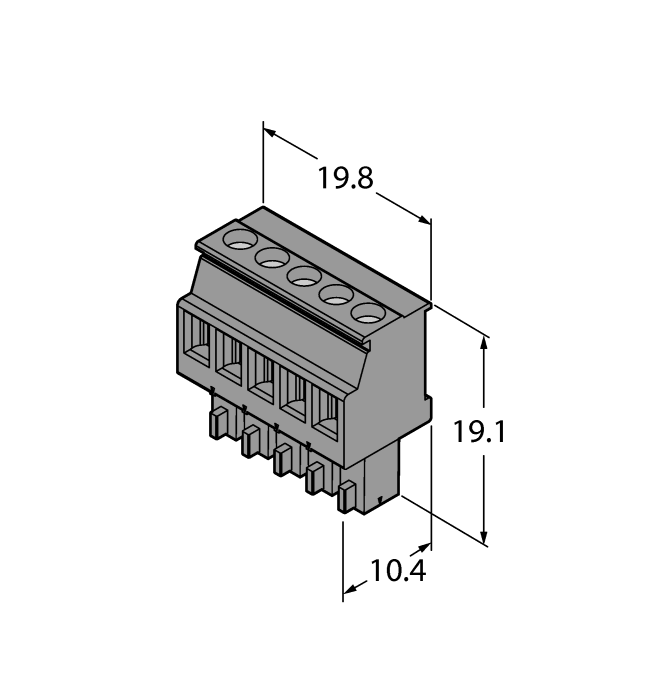

MC 1.5/ 5-ST-3.81 BK
Power Bridge Connection Terminal |
7580956 |
|

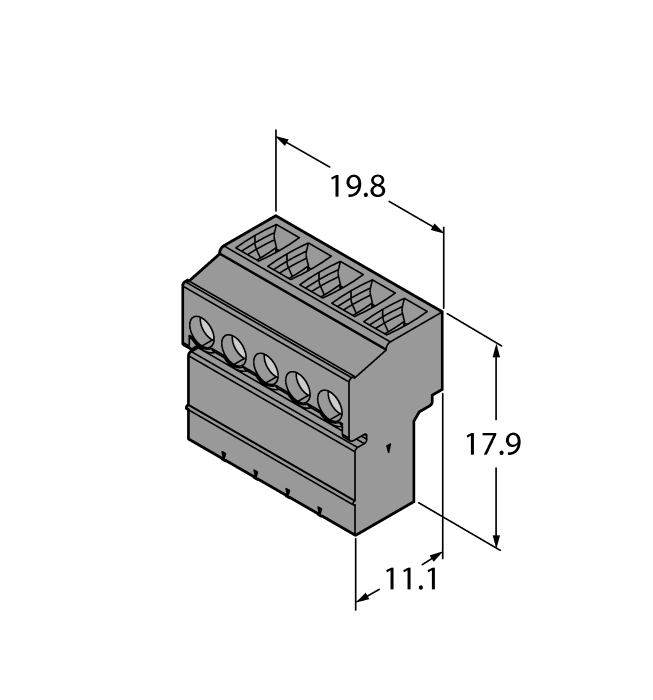

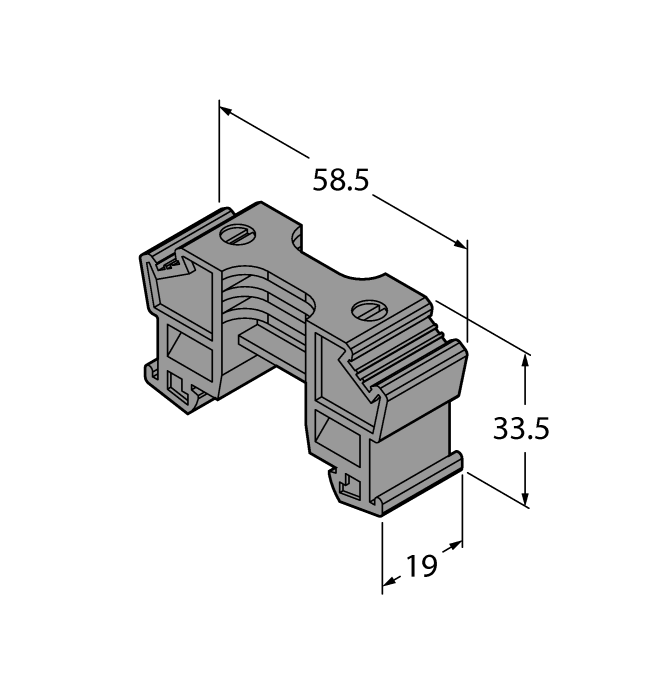

E/ME TBUS NS35 BK
