Product P1-RI-QR24

Zoom

Accessories

Positioning Element

For Encoders RI-QR24

Ident. no.: 1590921

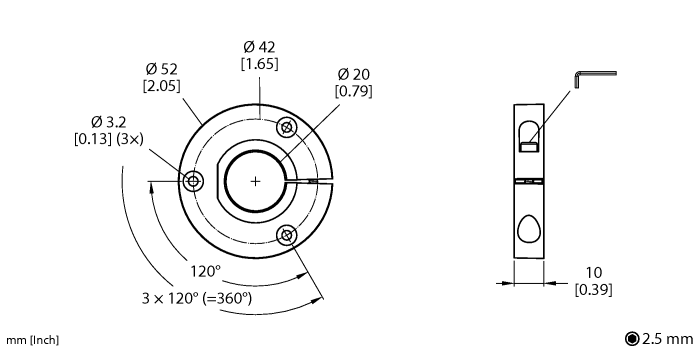

Positioning element, for Ø 20 mm shafts

Hide All Open All

Specifications
Download
Accessories
CAD

General data

EAN	4047101292206
eCl@ss-Code (V5.1.4):	27279290 -/- Sensor accessories (not classified)
Customs tariff number	85045000900
Country of origin	DE
Weight	29 g

Technical Data

Encoder line	Premium-Line
Technology	Accessories contactless encoder
Housing material	Metal/plastic

Data Sheets

English	681 KB

CAD File

2D (DWG)	81 KB

Catalog

Position Catalog	37256 KB

Mounting accessories

1590922	P2-RI-QR24	Positioning element, for Ø 14 mm shafts
1590923	P3-RI-QR24	Positioning element, for Ø 12 mm shafts
1590924	P4-RI-QR24	Positioning element, for Ø 10 mm shafts
1590925	P5-RI-QR24	Positioning element, for Ø 6 mm shafts
1590926	P6-RI-QR24	Positioning element, for Ø 3/8“ shafts
1590927	P7-RI-QR24	Positioning element, for Ø 1/4“ shafts
1593012	P9-RI-QR24	Positioning element for installation on Ø 1/2“ shafts
1593013	P10-RI-QR24	Positioning element for installation on Ø 5/8“ shafts
1593014	P11-RI-QR24	Positioning element for installation on Ø 3/4“ shafts

Functional accessories

1590916	P8-RI-QR24	Positioning element with blanking plug for large shafts
1590920	M1-QR24	Aluminum protecting ring, for inductive encoders RI-QR24
1590937	PE1-QR24	Positioning element without adapter sleeve
1590928	RA1-QR24	Adapter sleeve, for Ø 20 mm shafts
1590929	RA2-QR24	Adapter sleeve, for Ø 14 mm shafts
1590930	RA3-QR24	Adapter sleeve, for Ø 12 mm shafts
1590931	RA4-QR24	Adapter sleeve, for Ø 10 mm shafts
1590932	RA5-QR24	Adapter sleeve, for Ø 6 mm shafts
1590933	RA6-QR24	Adapter sleeve, for Ø 3/8“ shafts
1590934	RA7-QR24	Adapter sleeve, for Ø 1/4“ shafts
1590960	RA9-QR24	Adapter sleeve, for Ø 1/2” shafts
1590961	RA10-QR24	Adapter sleeve, for Ø 5/8” shafts
1590962	RA11-QR24	Adapter sleeve, for Ø 3/4” shafts
1590959	RA8-QR24	Plug for mounting option C
1590938	SP1-QR24	Shield plate Ø 74 mm, aluminium
1590939	SP2-QR24	Shield plate Ø 74 mm, aluminiuim, with borehole for shaft feedthrough
1590958	SP3-QR24	Shield plate Ø 52 mm, aluminium
1590935	MT-QR24	Mounting aid for optimal alignment of positioning element
