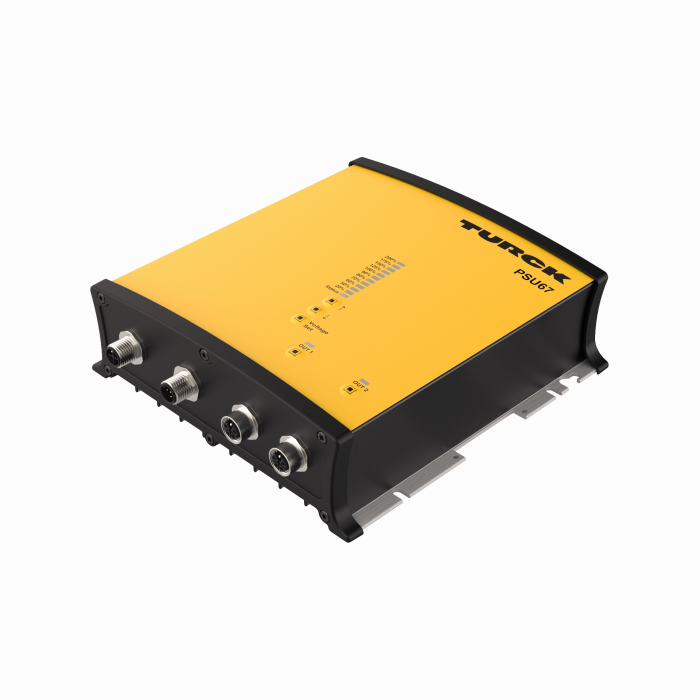

Product PSU67-3P-1S-2L-24250-F
Smart Power Supply Module in IP67
24…28 VDC Output Voltage
3-Phase, 25-A Output Current
Ident. no.: 100028238- Broad temperature range
- Status LED
- High efficiency, > 95 %
- 3-phase AC input, M12 S-coded
- Current-limited outputs, 2 × M12 L-coded
- Protected by eFuse (V1 + V2 bridged)
- Relay contact for checking the DC status
- LED interface and control buttons for maximum flexibility
General data
| EAN | 4047101540109 |
| eCl@ss-Code (V5.1.4): | 27049002 -/- DC supply |
| Customs tariff number | 85044083900 |
| Country of origin | CZ |
| Weight | 1604 g |
Technical Data
| Power supply | 3 × AC 380…480 V |
| Nominal output voltage | 24 V |
| Output voltage | 24…28 VDC |
| Nominal current | 25 A |
| Status interface | Relay output (DC-OK) |
| Internal fuse | V1 + V2 bridged |
| Parallel mode | no |
| Power Good Output | no |
| Dimensions | 183 x 180.6 x 58.7 mm |
| Protection class | IP67 |
