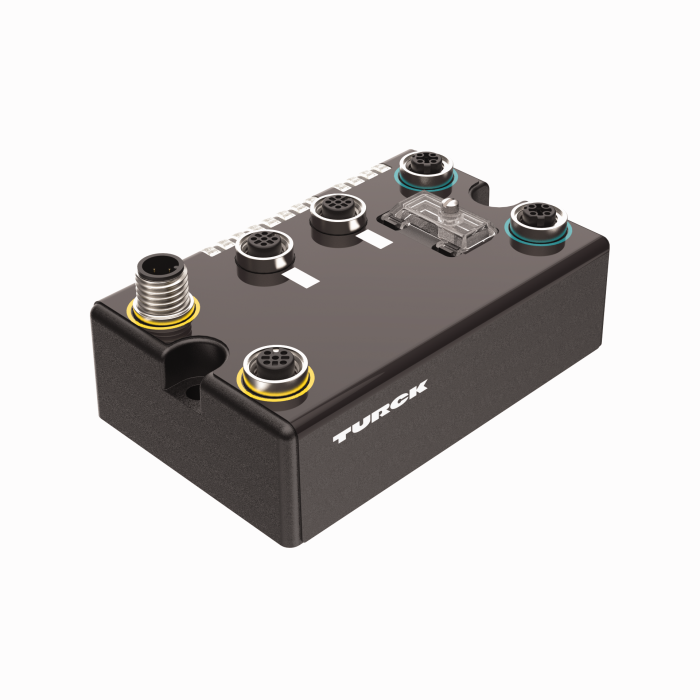

Product  BLCEN-2M12MT-2RFID-A

BL compact™ fieldbus station for PROFINET®

Interface for Connection of 2 BL ident Read/Write Heads (HF/UHF)

Ident. no.: 6811484
    • On-machine Compact fieldbus I/O block
    • PROFINET slave
    • Integrated Ethernet Switch
    • 10 Mbps / 100 Mbps supported
    • Two 4-pole M12, D-coded, connectors for fieldbus connection
    • 2 rotary switches for node address
    • IP67, IP69K
    • M12 I/O connectors
    • LEDs indicating status and diagnostics
    • Electronics galvanically separated from the field level via optocouplers
    • Advanced RFID interface
    • Software function block (PIB) required for control
    • Connection of 2 BL ident® read/write heads
    • Max cable length of 50 m
#
Hide All Open All

General data

EAN 4047101297096
eCl@ss-Code (V5.1.4): 27250313 -/- Communication interface, passive
Customs tariff number 85176200000
Country of origin US
Weight 478 g

Technical Data

Fieldbus Protocol Modbus TCP, EtherNet/IP, PROFINET
Number of channels 2
Ambient temperature -40…+70 °C
Protection class IP67/IP69K

Connectivity accessories — Network

RSSD RSSD 441-2M

Cable for Industrial Ethernet, M12 male connector, D-coded, straight to M12 male connector, D-coded, straight, cable length: 2 m, jacket material: TPE, turquoise

 U-02482
RSSD RJ45 441-2M

Cable for Industrial Ethernet, M12 male connector, D-coded, straight to RJ45 male connector, straight, cable length: 2 m, jacket material: TPE, turquoise

 U-08880

Connectivity accessories — Technology

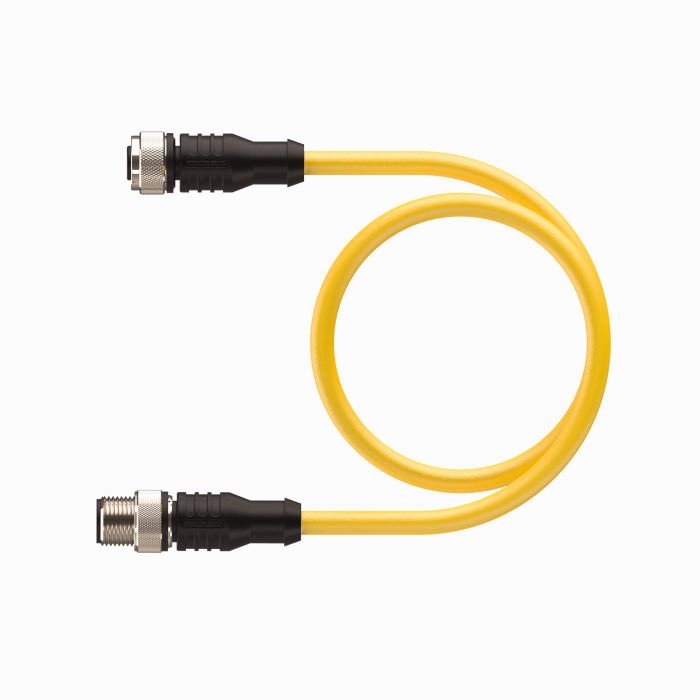

RK 4.5T-2-RS 4.5T/S2501

Actuator and Sensor Cordset, Extension Cable, M12, Female, Straight, 5-pin, M12, Male, Straight, 5-pin, IP68, IP69K, Cable length: 2 m, Cable jacket: PVC, Yellow, other cable lengths and qualities available, see www.turck.com

U3-01243
