Product FCS-N1/2A4-NA-H1141-L060
Flow Monitoring
Immersion Sensor without Integrated Processor
Ident. no.: 6871310- Sensor for liquid media
- Calorimetric functionality
- Adjustment via signal processor
- Status indicated via LED chain on signal processor

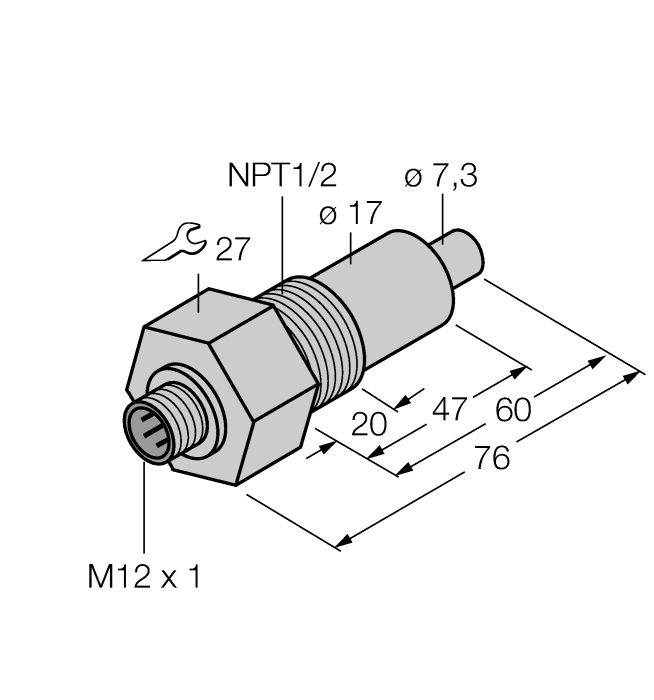

- Sensor length 60 mm
- Connector device, M12 × 1
- 4‐wire connection to the processor
General data
| EAN | 4047101175820 |
| eCl@ss-Code (V5.1.4): | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 90261021000 |
| Country of origin | DE |
| Weight | 210 g |
Technical Data
| Function | Flow monitoring |
| Design | Immersion |
| Process connection | 1/2″ NPT |
| Medium | liquids |
| Detection type | Calorimetric |
| Electrical connection | Connector, M12 × 1 |
| Sensor material | Stainless steel |
| Housing material | Stainless steel, 1.4571 (AISI 316Ti) |
| Medium temperature | -20…+80 °C |
| Protection class | IP67 |
