Product PSGS 4M RJ45S 4413-2M
Ethernet Cordset
Extension Cable
Ident. no.: U2-24205- M8, Male, Straight, 4-pin
- Threaded Connector
- RJ45, Male, Straight, 8-pin, Shielded
- Industrial Ethernet Cable
- TPU jacket,Teal, shielded, 2UTPX26 AWG-40 Cold Bend Rating
- Flexlife® and C-Track Approved

General data
EAN | 4047101436426 |
Customs tariff number | 85444290900 |
Country of origin | MX |
Weight | 98 g |
Technical Data
Design | Double-ended |

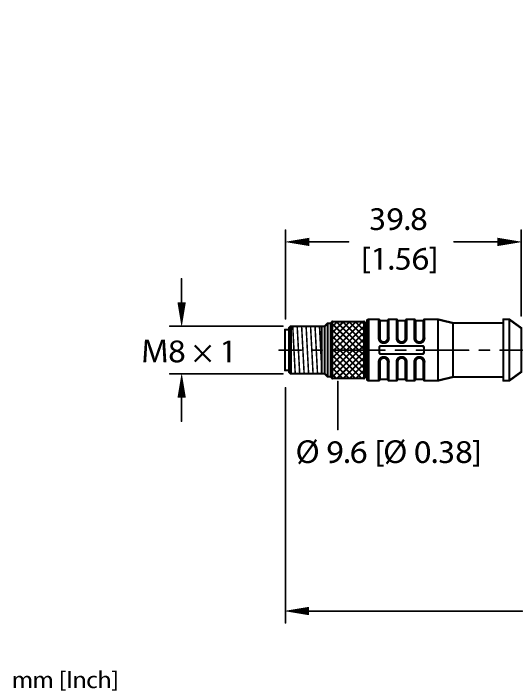

Connector A | Male, M8 × 1, Straight |
Number of contacts | 4 |
Connector body | Plastic, TPU, Yellow |
Coupling nut | Brass, CuZn, Nickel-plated |

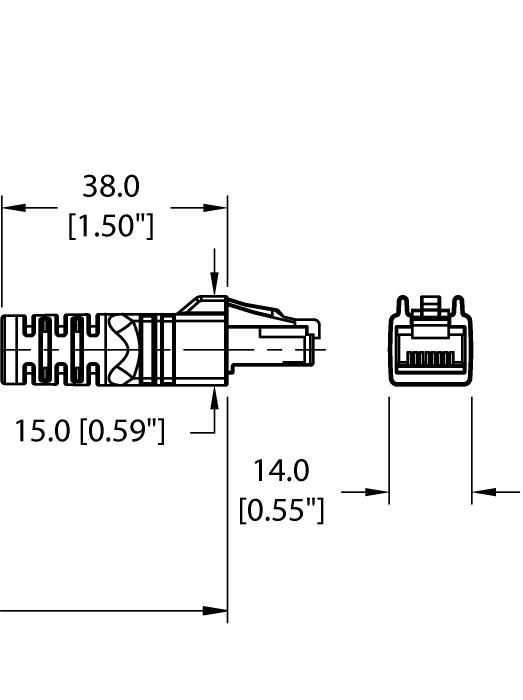

Connector B | Male, RJ45, Straight |
Number of contacts | 8 |
Connector body | Plastic, TPU |
Fieldbus Protocol | Ethernet |
Voltage | 42 V |
Current | 1.5 A |
Cable diameter | Ø 5.69 mm |
Length (L) | 2.0 m |
Cable jacket | TPU, Teal |
Number of Conductors | 4 |
Protection class (When coupled) | IP68 |
Special Features | Shielding on coupling nut |
Approvals | RoHS, CE |
