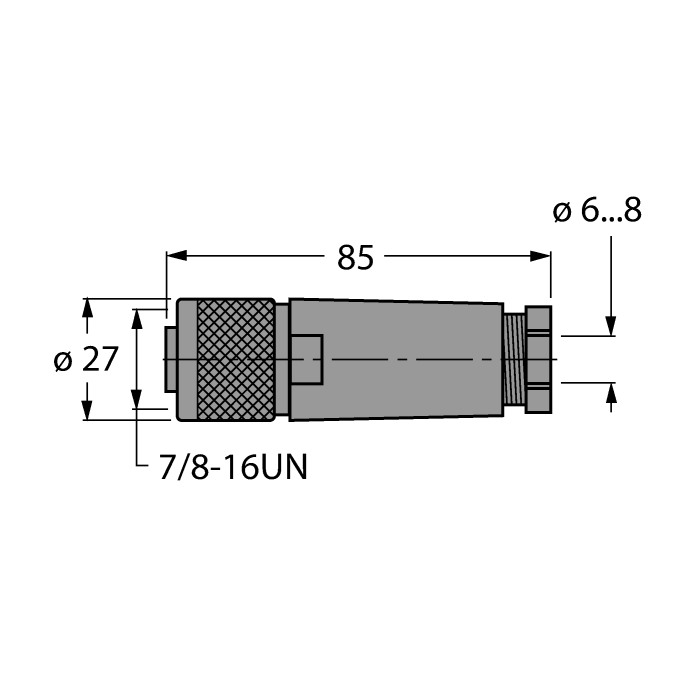

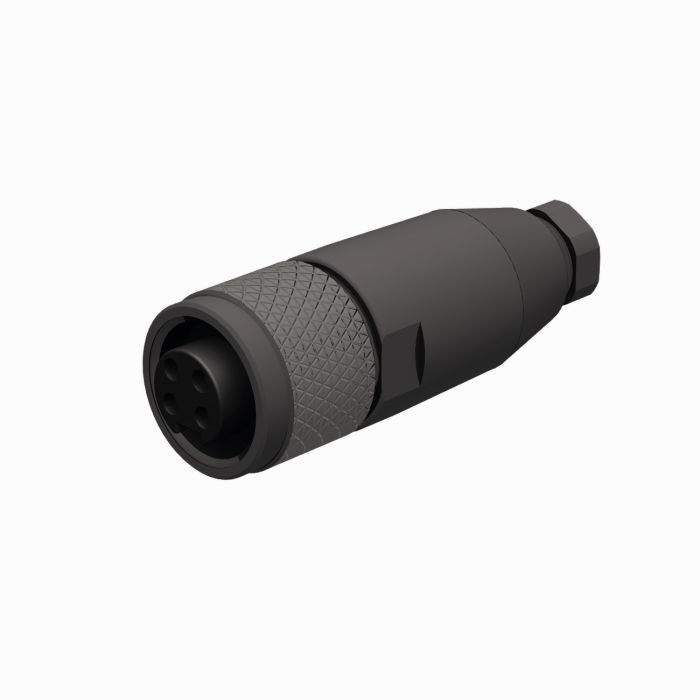

Product  BK4140-0/9

Field-Wireable Connector

7/8″ Female, Straight

Ident. no.: 6914551
    • For use in PROFIBUS-PA and FOUNDATION fieldbus applications
    • Screw-clamp terminal
    • Anodized aluminum coupling nut
    • 4-pin
    • PG9 screw-in thread
    • Cable feedthrough 6.0…8.0 mm
#

General data

EAN 4047101510782
eCl@ss-Code (V5.1.4): 27279201 -/- Connectivity (accessories sensors)
Customs tariff number 85366990990
Country of origin CZ
Weight 46 g

Technical Data

Application Signal, Data
Fieldbus Protocol FOUNDATION fieldbus, PROFIBUS-PA
Connector A Female, 7/8″-16 UN, Straight
Number of contacts 4
Connection mode Screw/clamp connection
Mounting thread PG9
Housing material Plastic, PA
Coupling nut/screw material Aluminum, Al, Anodized
Acceptable cable diameter 6…8 mm
Core cross-section/Clamping ability 0.14…1 mm²
Voltage 250 V
Current 9 A
