Product WK 4.4T-x-RS 4.4T

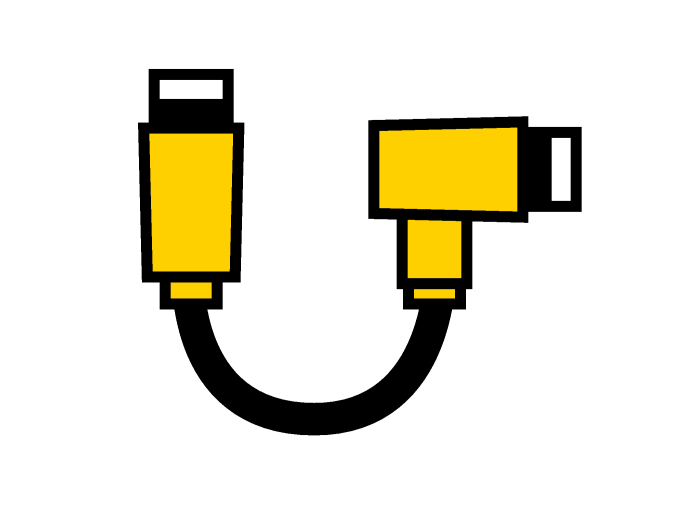

Double-ended Cordset
Right angle Female Connector to Straight Male Connector
Ident. no.: 777000207- Right angle Female M12 eurofast Connector
- Straight Male M12 eurofast Connector
Technical Data
| Application | Signal |
| Design | Double-ended |
| Connector A | Female, M12 × 1, Right angle, A-code |
| Number of contacts | 4 |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Connector B | Male, M12 × 1, Straight |
| Number of contacts | 4 |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Voltage | 250 V |
| Current | 4 A |
| Cable jacket | PVC, Gray |
| Number of Conductors | 4 |
| Special Features | Tray cable |
| Approvals | UL Listed, CSA, RoHS |
