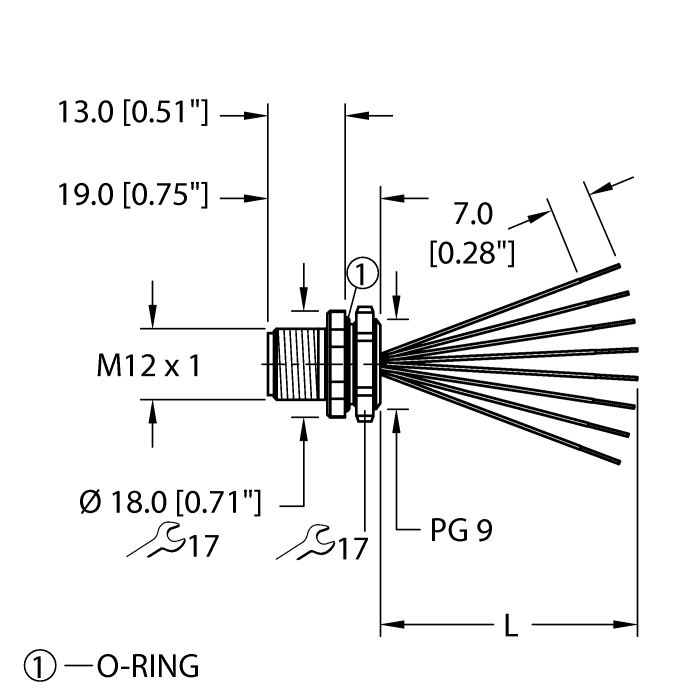

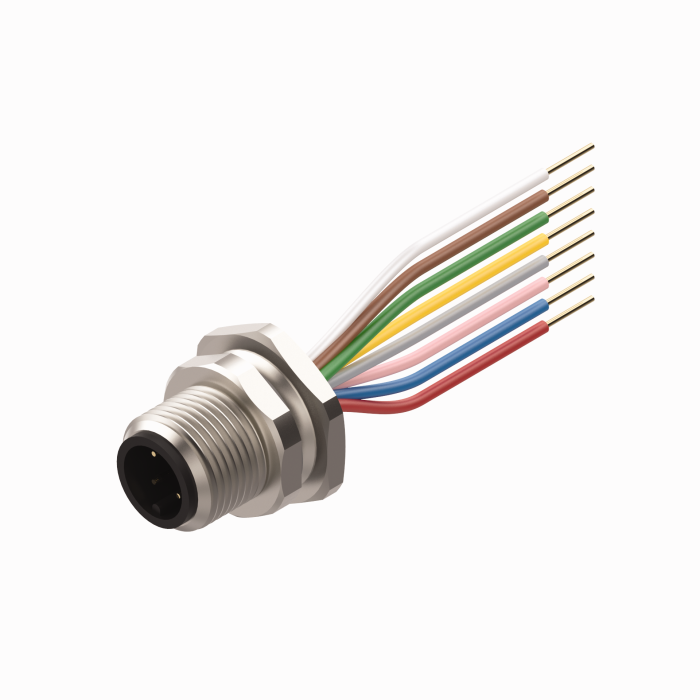

Product FS 8-x
Actuator and Sensor Receptacle
Front Mount
Ident. no.: 777000237- M12, Male, Receptacle, 8-pin
- Mounting thread: PG9
Technical Data
| Application | Signal |
| Connector A | Male, M12 × 1, A-code |
| Number of contacts | 8 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | PG9 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Current | 2 A |
| Protection class (When coupled) | IP68 |
| Approvals | UL 2238, CE, UKCA, RoHS |
