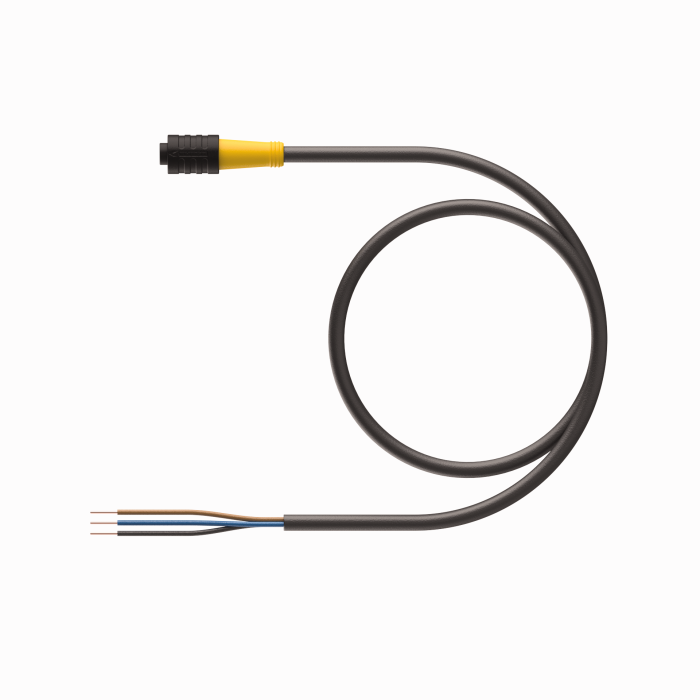

Product  PKG 3Z-x/S90

Actuator and Sensor Cordset

Connection Cable

Ident. no.: 777001072
    • M8, Female, Straight, 3-pin
    • Snap-on Connector with Sleeve Lock
    • General Purpose Cable
    • TPU jacket, Black, 3X24 AWG
    • -40 Cold Bend Rating
    • Flame Ratings: UL1061, CSA FT1
    • Flexlife® and C-Track Approved
#

General data

eCl@ss-Code (V5.1.4): 27250107 -/- Connection cable sensor-actuator

Technical Data

Application Actuator and Sensor
Design Single-ended

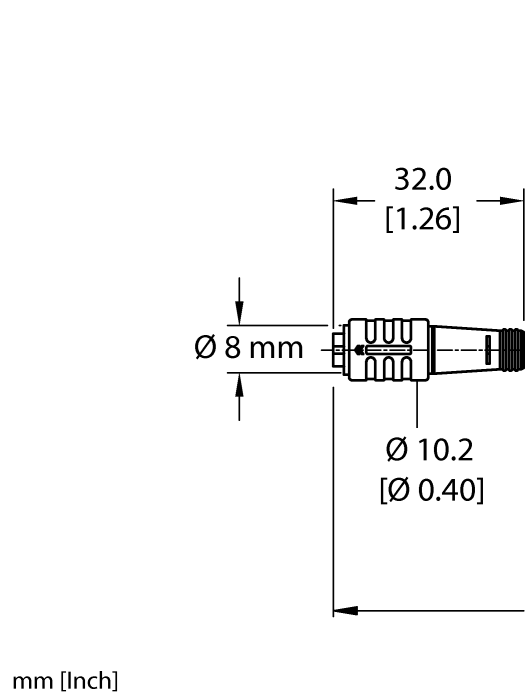

Connector A Female, Ø 8 mm, Straight
Number of contacts 3
Connector body Plastic, TPU, Yellow
Voltage 125 V
Current 4 A
Cable diameter Ø  4.19 mm
Cable jacket TPU, Black
Number of Conductors 3
Protection class (When coupled) IP67
Approvals UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
