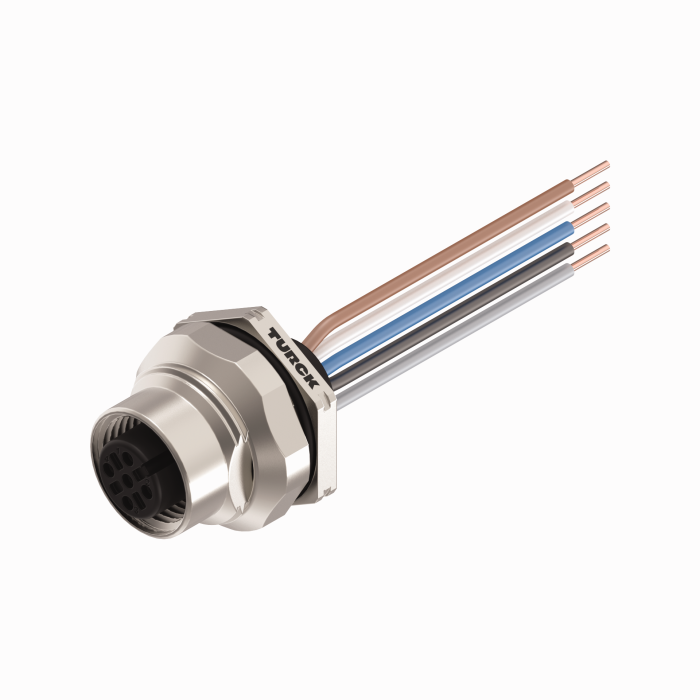

Product FKFD 4.5-x
Actuator and Sensor Receptacle
Rear Mount
Ident. no.: 777001909- Female M12 eurofast Receptacle
Technical Data
| Application | Signal |
| Design | Single-ended |
| Number of contacts | 5 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Rear mount |
| Mounting thread | PG9 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Voltage | 250 V |
| Current | 4 A |
| Number of Conductors | 5 |
| Approvals | CSA C22.2 No. 182.3, CE, RoHS, UL Listed, UL 2238 |
