Product BSM 6-085-x
Actuator and Sensor Cordset
Connection Cordset
Ident. no.: 777002807- Straight Male M16 versafast Connector
- M16, Male, Straight, 6-pin
General data
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
Technical Data
| Application | Signal |
| Design | Single-ended |

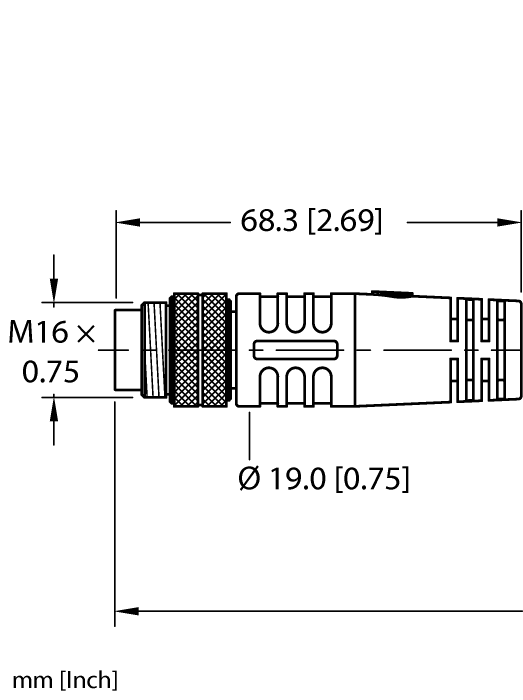

| Connector A | Male, M16 × 0.75, Straight |
| Number of contacts | 6 |
| Connector body | Plastic, TPU, Yellow |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Voltage | 300 V |
| Current | 7 A |
| Cable jacket | PVC, Yellow |
| Number of Conductors | 6 |
| Protection class (When coupled) | IP67 |
| Special Features | Tray cable |
| Approvals | CE, RoHS, UL Listed, UL 2238 |
