Product FS 4.5-x/18.25

Zoom
Zoom

« Prev Next »

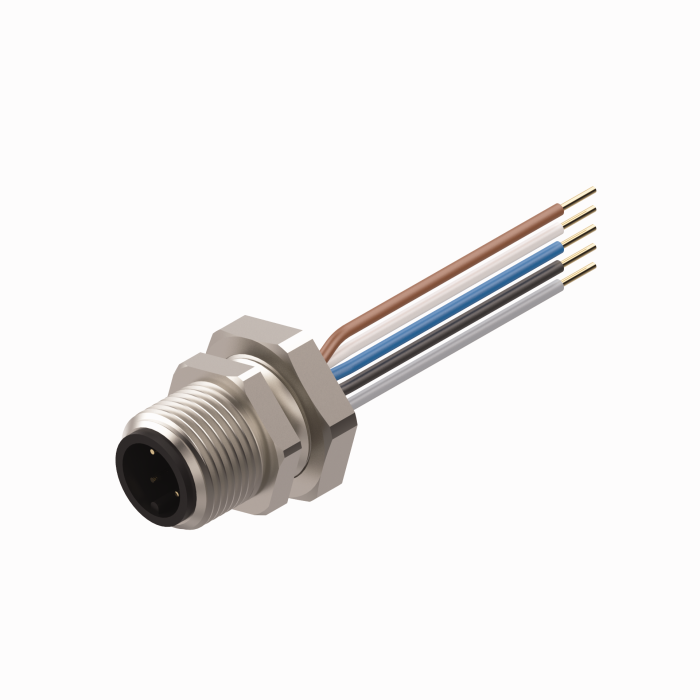

Actuator and Sensor Receptacle

Front Mount

Ident. no.: 777003684

M12, Male, Receptacle, Front mount, 5-pin

Mounting thread: 1/4″-18 NPT

Hide All Open All

Specifications
Download
Accessories

Technical Data

Application	Signal
Connector A	Male, M12 × 1, A-code
Number of contacts	5
Housing material/finish	Brass, CuZn, Nickel-plated
Mounting orientation	Front mount
Mounting thread	1/4″-18 NPT
Housing material/finish	Brass, CuZn, Nickel-plated
Voltage	250 V
Current	4 A
Protection class (When coupled)	IP68
Approvals	UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
