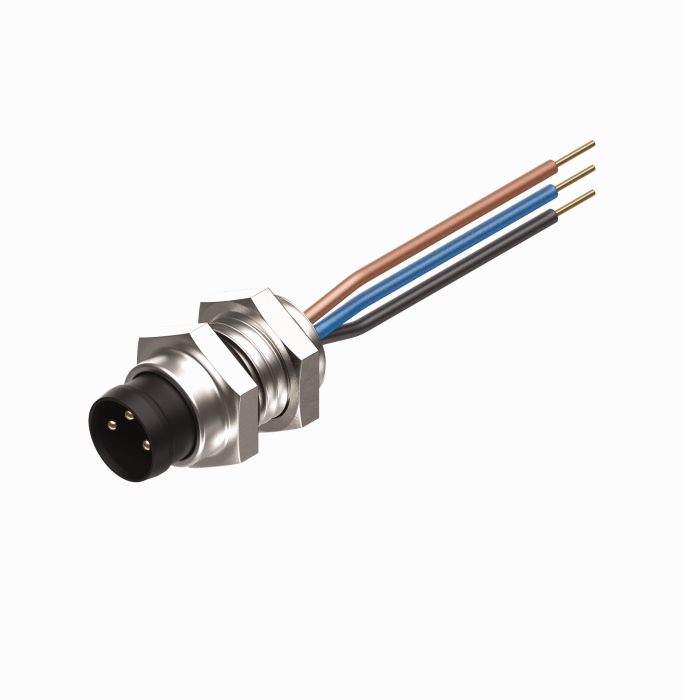

Product MFS 3-x
Actuator and Sensor Receptacle
Front Mount
Ident. no.: 777009653- M8, Male, 3-pin

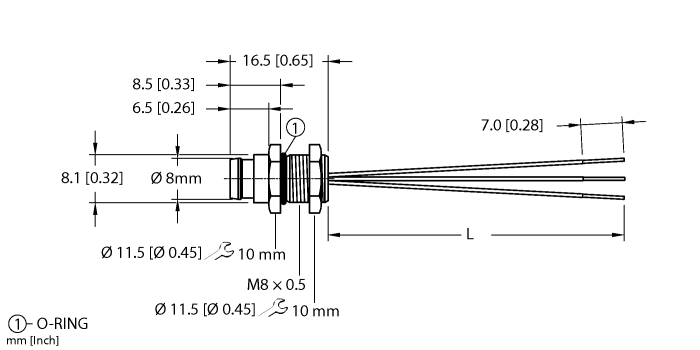

- Mounting thread: M8 × 0.5
Technical Data
| Application | Signal |
| Connector A | Male, M8 - Ø 8 mm (snap) |
| Number of contacts | 3 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | M8 × 0.5 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Voltage | 125 V |
| Current | 4 A |
| Number of Conductors | 3 |
| Protection class (When coupled) | IP67 |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
