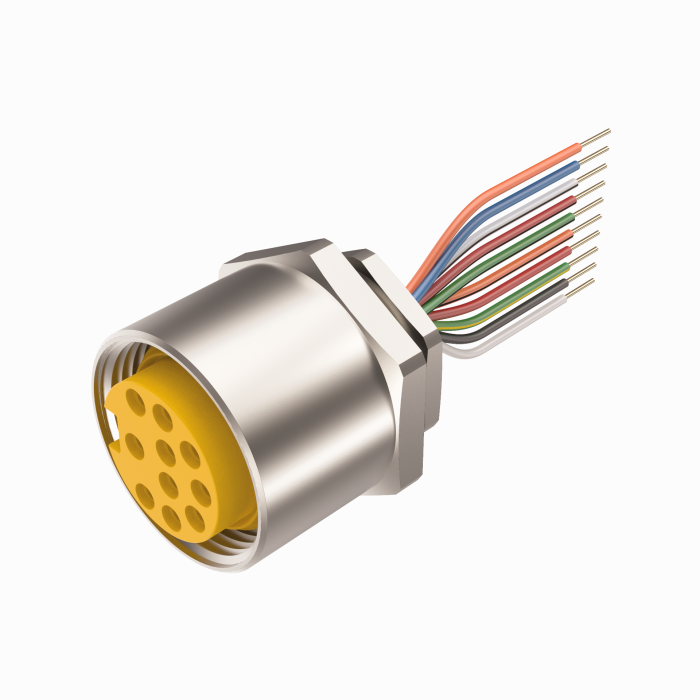

Product RKF 106-xM/M20
Actuator and Sensor Receptacle
Front Mount
Ident. no.: 777012214- Female 1 1/8″ minifast Receptacle, 10 pin
- Mounting thread: M20 × 1.5
Technical Data
| Application | Signal |
| Connector A | Female, 1 1/8″-16 UN |
| Number of contacts | 10 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | M20 × 1.5 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Voltage | 600 V |
| Current | 7 A |
| Protection class (When coupled) | IP67, IP68, IP69, IP69K |
| Approvals | CE, RoHS, UL Listed |
