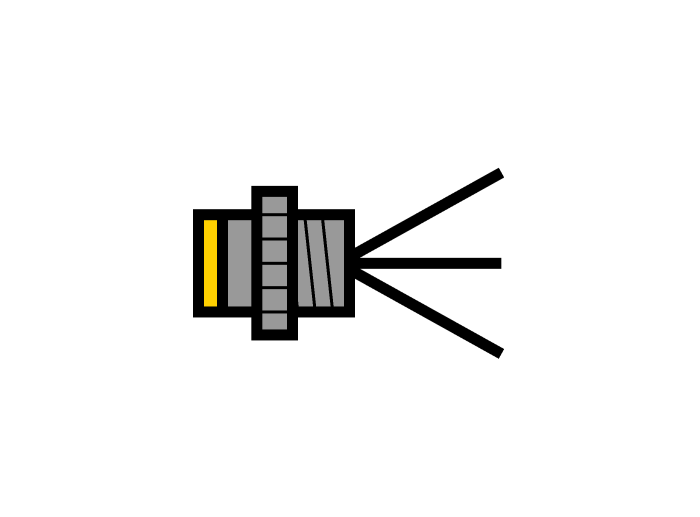

Product FS 4.4-x/14.5/NPT/S613
Actuator and Sensor Receptacle
Front Mount
Ident. no.: 777015493- Male M12 eurofast Receptacle
Technical Data
| Application | Signal |
| Design | Single-ended |
| Number of contacts | 4 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | 1/2″-14 NPT |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Voltage | 250 V |
| Current | 4 A |
| Number of Conductors | 4 |
| Approvals | CSA C22.2 No. 182.3, CE, RoHS, UL Listed, UL 2238 |
