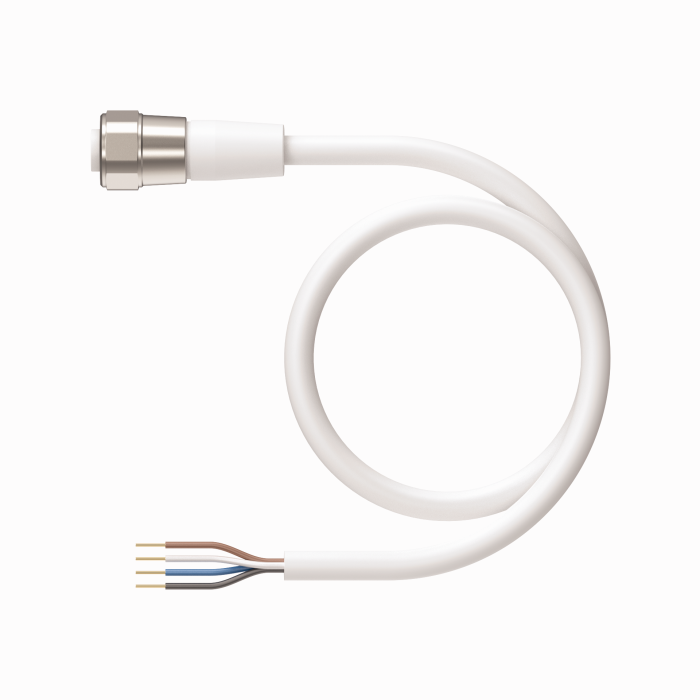

Product WD-RKV 40-xM
Washdown Cordset
Connection Cable
Ident. no.: 777016113- 7/8” Female, Straight, 4-pin
- Washdown Cable
- White TPV jacket, 4X18 AWG
- -40 Cold Bend Rating
Technical Data
| Application | Washdown |
| Design | Single-ended |

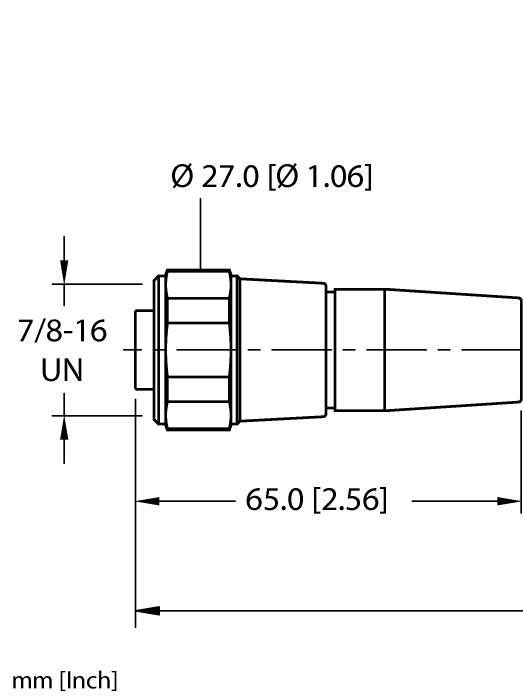

| Connector A | Female, 7/8″-16 UN, Straight |
| Number of contacts | 4 |
| Connector body | Plastic, TPU, White |
| Coupling nut | Stainless Steel, CuZn, Passivated |
| Voltage | 300 V |
| Current | 9 A |
| Cable diameter | Ø 6.2 mm |
| Cable jacket | TPV, White |
| Number of Conductors | 4 |
| Protection class (When coupled) | IP67 |
| Approvals | RoHS |
