Product CSM CKFD 19-19-x
Actuator and Sensor Cordset

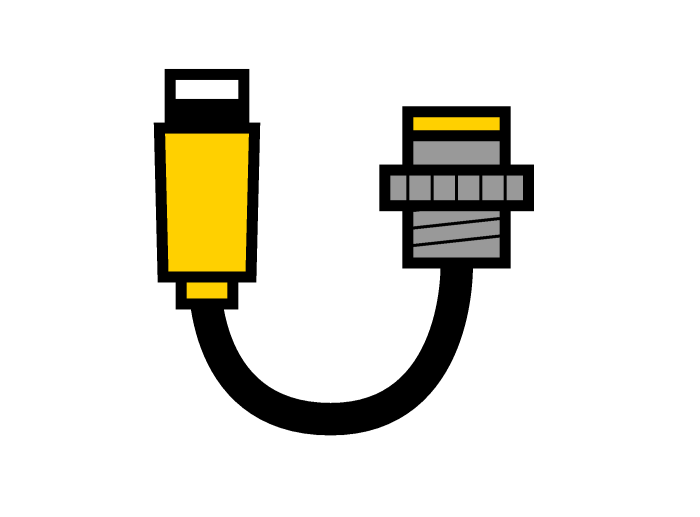

Extension Cordset
Ident. no.: 777016321- Straight Male M23 multifast Connector
- Female M23 multifast Receptacle
Technical Data
| Application | Signal |
| Design | Double-ended |
| Connector A | Male, M23 × 1, Straight |
| Number of contacts | 19 |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Connector B | Female, M23 × 1 |
| Number of contacts | 19 |
| Mounting type | Rear mount |
| Mounting Thread B | M25 × 1.5 |
| Voltage | 150 V |
| Current | 9 A |
| Cable jacket | PVC, Yellow |
| Number of Conductors | 19 |
| Special Features | Tray cableShielded |
| Approvals | CE, RoHS, UL Listed, UL 2238 |
