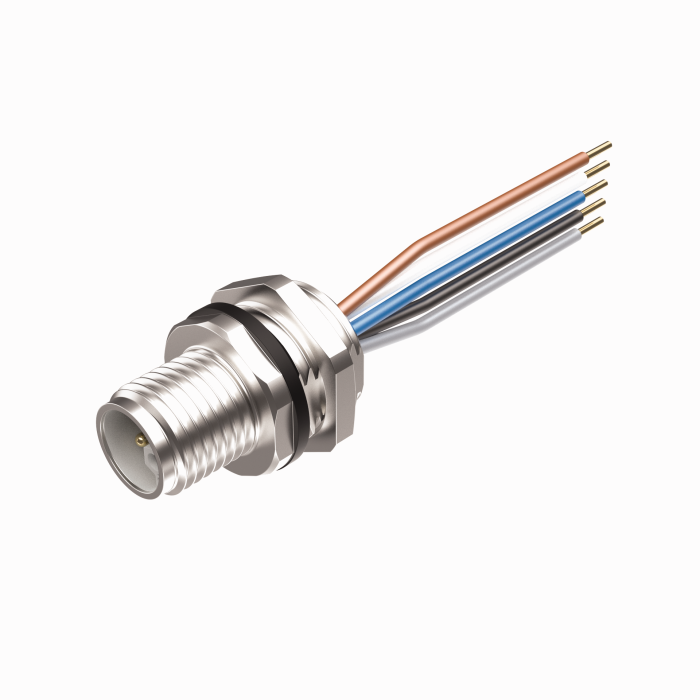

Product FS56PL-*/M16
M12 Power Receptacle
Front Mount
Ident. no.: 777042502- M12 Power, Male, L-code, 4-pole + FE
- Mounting thread: M16 x 1.5
General data
| Customs tariff number | 8536694020 |
| Country of origin | MX |
| Weight | 1.1 g |
Technical Data
| Application | Power (>11 Amps) |
| Connector A | Male, M12 × 1, L-code |
| Number of contacts | 4+FE |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | M16 × 1.5 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Voltage | 63 V |
| Current | 14 A |
| Number of Conductors | 5 |
| Protection class (When coupled) | IP67, IP68 |
