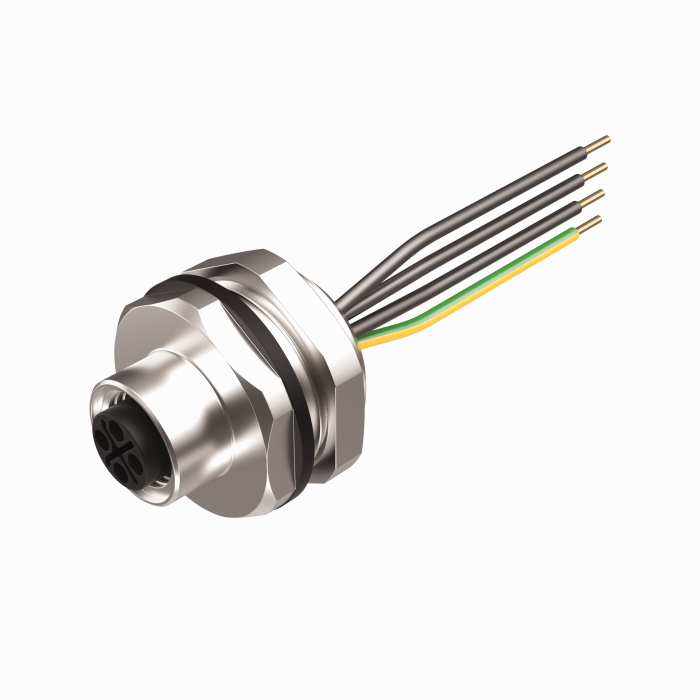

Product FK46PS-x/14.5/NPT
M12 Power Receptacle
Front Mount
Ident. no.: 777045489- M12 Power, Female, S-code, 3-pole + PE

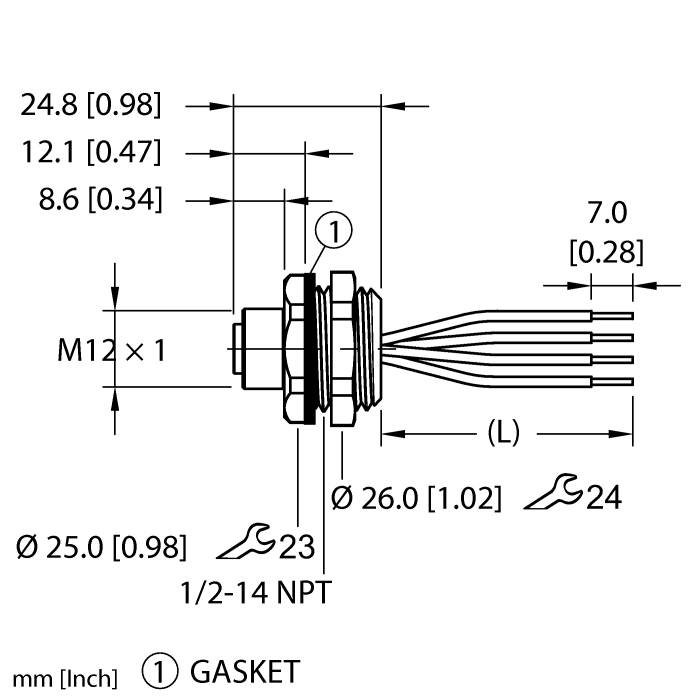

- Mounting thread: 1/2″-14 NPT
Technical Data
| Application | Power (>11 Amps) |
| Connector A | Female, M12 × 1, S-code |
| Number of contacts | 3+PE |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | 1/2″-14 NPT |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Voltage | 600 V |
| Current | 12 A |
| Number of Conductors | 4 |
| Protection class (When coupled) | IP67, IP68 |
