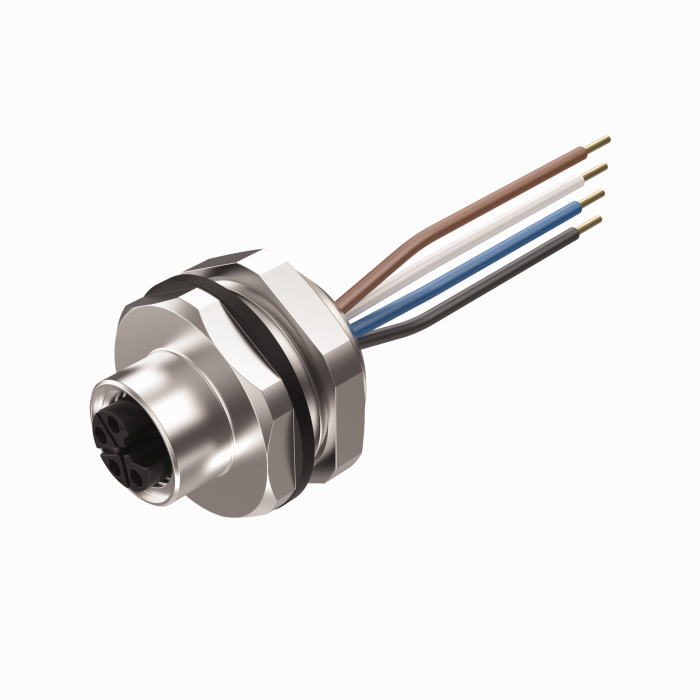

Product FK44PL-*/14.5/NPT
M12 Power Receptacle
Front Mount
Ident. no.: 777045522- M12 Power, Female, L-code, 4-pole
- Mounting thread: 1/2″-14 NPT
General data
| Customs tariff number | 8536694020 |
| Country of origin | US |
| Weight | 0 g |
Technical Data
| Application | Power (>11 Amps) |
| Connector A | Female, M12 × 1, L-code |
| Number of contacts | 4 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | 1/2″-14 NPT |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Voltage | 63 V |
| Current | 16 A |
| Number of Conductors | 4 |
| Protection class (When coupled) | IP67, IP68 |
