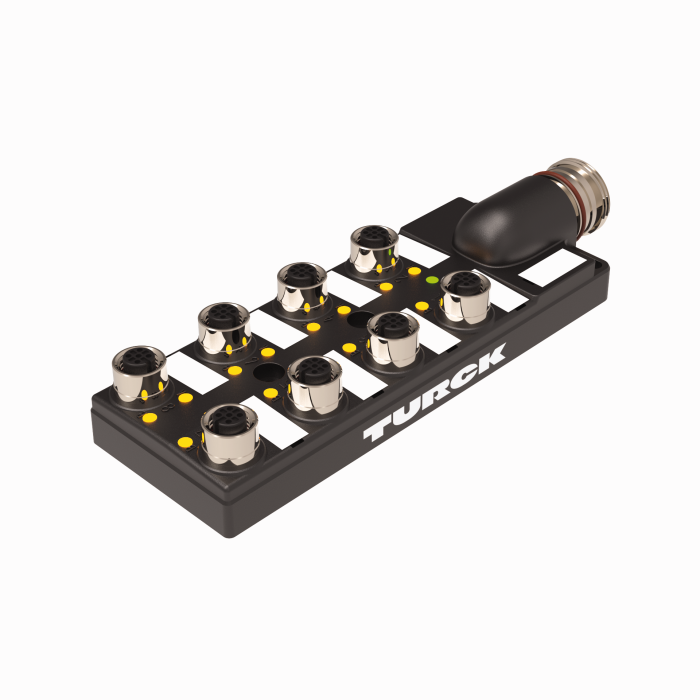

Product 8MB12Z-5P3-CS19H
Passive Actuator/Sensor Junction Box, 8 Ports
M12 x 1 I/O port with M23 homerun
Ident. no.: E8026482- Housing material: PA 6 GF30
- Housing color: Black
- Fully encapsulated
- Protection class: IEC: IP67; NEMA: 1, 3, 4, 6P
- CE compliant
- RoHS compliant
- LED (PNP circuitry)
- I/O port: 5-pin
General data
| EAN | 4047101355079 |
| Customs tariff number | 85366990990 |
| Country of origin | CN |
| Weight | 301 g |
Technical Data
| Application | Signal |
| Number of ports | 8 |
| Display switching state | LED, yellow |
| Switching function | PNP |
| I/O Port | Female, M12 × 1 |
| Number of contacts | 4+PE |
| Signals Per Port | 2 |
| Homerun connector | Male, M23 × 1, Side exit |
| Number of contacts | 19 |
| Housing material | Plastic, PA6-GF30 |
| Ampacity | 2 A per signal contact, total current 9 A |
| Approvals | UL Listed, CE, UKCA, RoHS |
