Product BLK,TPU,12X22,S-DF,AWM
General Purpose Cable
Reelfast™ Bulk Cable
Ident. no.: RF51001- General Purpose Cable

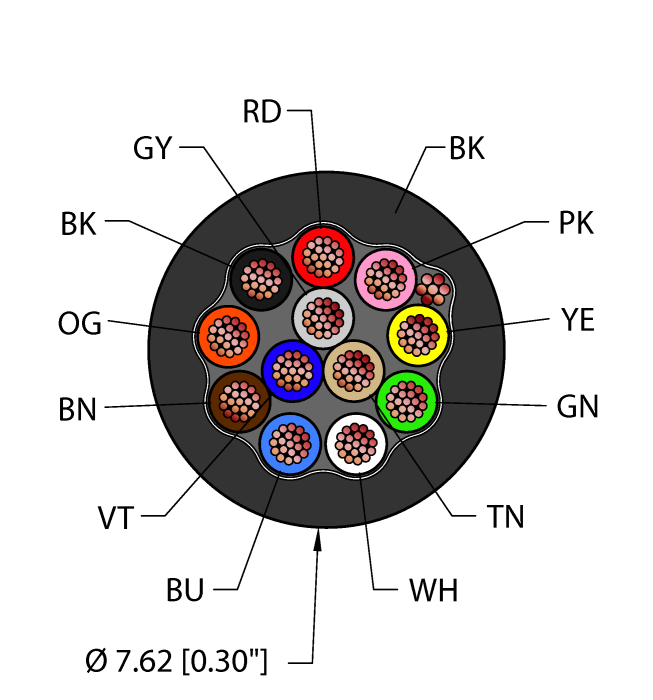

- Black TPU jacket, shielded, 12X22 AWG
- -40 Cold Bend Rating
- Flame Ratings: UL1061, CSA FT1
- UL/CSA AWM 300V
Technical Data
| Cable Platform | General Purpose Cable |
| Number of Conductors | 12 |
| Conductor size | 22 AWG [Similar to 0.34 mm²] |
| Cable diameter | Ø 7.62 mm |
| Cable jacket | TPU, Black |
| Shield | Aluminum/polyester (IN) |
| Shield | DrainFoil |
| UL Approvals | UL 758 AWM 21743 |
| CSA Approvals | CSA AWM I/II A/B, CSA FT1 |
| Compliances | RoHS |
