Product RSM-2RKM 57

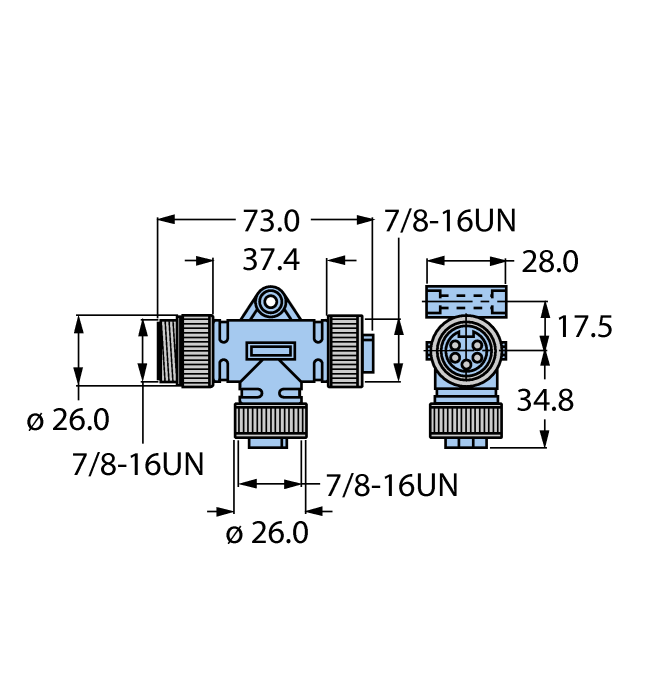

2-Way Splitter
T-Splitter without Cable
Ident. no.: U0141- 7/8" minifast
- T-splitter, 5-pin
- For use in CAN (DeviceNet™, CANopen) applications
General data
| EAN | 4047101019773 |
| eCl@ss-Code (V5.1.4): | 27250316 -/- Passive sensor/actuator junction |
| Customs tariff number | 8536694020 |
| Country of origin | MX |
| Weight | 122 g |
Technical Data
| Application | Data |
| Design | T-splitter |
| Device type | T-splitter |
| Connector A | Male, 7/8″-16 UN, A-code |
| Connector B | 2 x Female, 7/8″-16 UN, A-code |
| Number of Drops/Branches | 2 |
| Fieldbus Protocol | DeviceNet |
| Voltage | 300 V |
