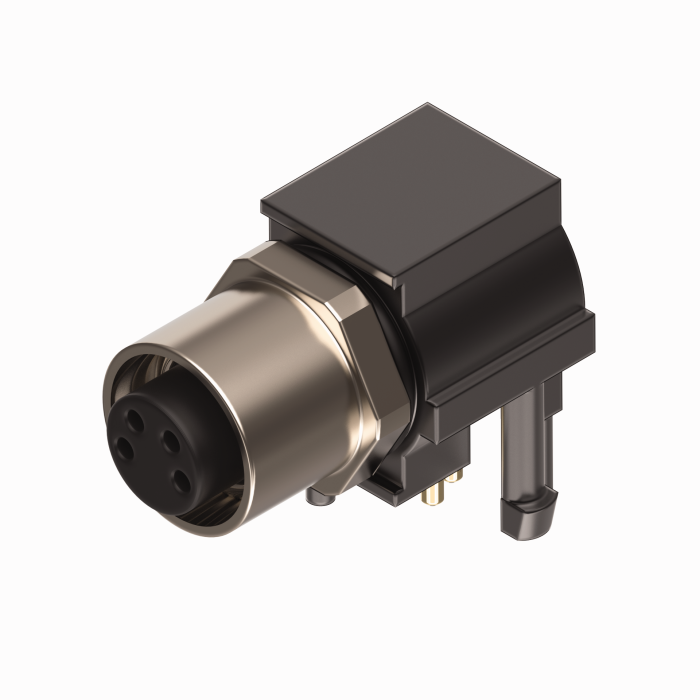

Product WMFKSH 4F-PCB
Actuator and Sensor Receptacle
Rear Mount
Right-angle PCB Pins
Ident. no.: U2-07211- M8, Female, 4-pin
- Mounting thread: M8 × 0.5
General data
| EAN | 4047101471380 |
| Customs tariff number | 8536694020 |
| Country of origin | US |
| Weight | 5 g |
Technical Data
| Application | Signal |
| Connector A | Female, M8 × 1 |
| Number of contacts | 4 |
| Mounting orientation | Rear mount |
| Mounting thread | M8 × 0.5 |
| Voltage | 30 V |
| Current | 4 A |
| Protection class (When coupled) | IP67 |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
