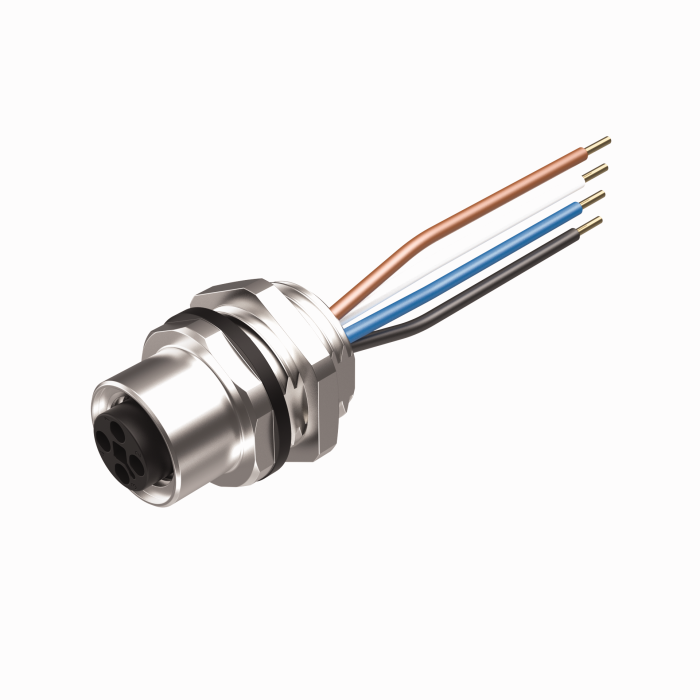

Product FK46PT-2/M16
M12 Power Receptacle
Front Mount
Ident. no.: U2-29258- M12 Power, Female, 4-pin, T-Code
- Mounting thread: M16 x 1.5
General data
| EAN | 4047101564174 |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 150 g |
Technical Data
| Application | Power (>11 Amps) |
| Connector A | Female, M12 × 1, T-code |
| Number of contacts | 4 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |

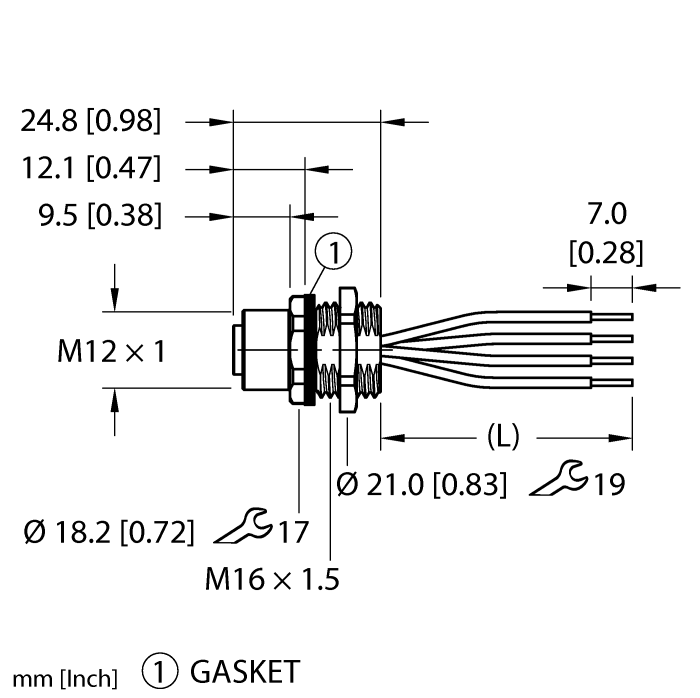

| Mounting thread | M16 × 1.5 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Voltage | 63 V |
| Current | 12 A |
| Length (L) | 2 m |
| Number of Conductors | 4 |
| Protection class (When coupled) | IP67, IP68 |
| Approvals | cULus recognized |
