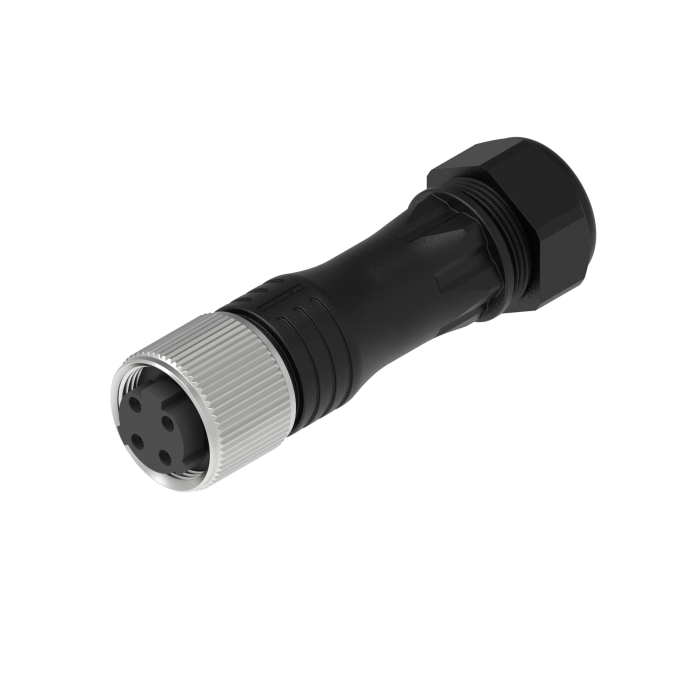

Product RKMC 42-0
Power Field Wireable
Field-Wireable Connector
Ident. no.: U2-32309- Straight Female 1 1/8" powerfast Field Wireable
- 4 pins
- Screw termination
- Plastic housing
- Screw terminal Wire Termination
- Plastic housing
- 1 1/8-16UN, minifast, Female, Straight, 4-pin
General data
| EAN | 4047101675245 |
| Customs tariff number | 85366990990 |
| Country of origin | US |
| Weight | 92 g |
Technical Data
| Application | Power (>11 Amps) |
| Connector A | Female, 1 1/8″-16 UN, Straight |
| Number of contacts | 4 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PA |
| Coupling nut/screw material | Brass, CuZn, Nickel-plated |
| Acceptable cable diameter | 13…18 mm |
| Core cross-section/Clamping ability | 12 mm² |
| Voltage | 600 V |
| Current | 25 A |
