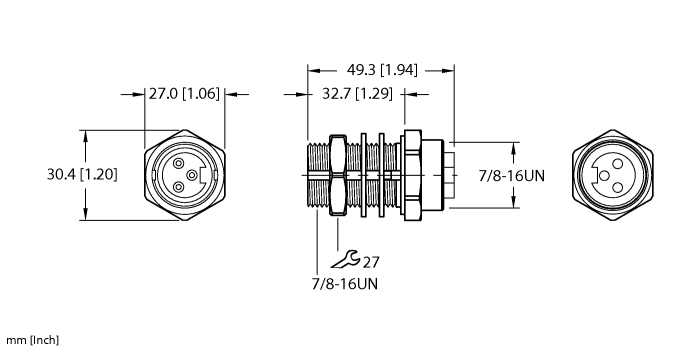

Product RSF RKF 30/22
Actuator and Sensor Receptacle
Panel Feed-through
Ident. no.: U2309-46- Male 7/8″ minifast Receptacle, 3 pin
- Mounting thread: 7/8-16UN
- Female 7/8″ minifast Receptacle, 3 pin
General data
| EAN | 4047101039436 |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 101 g |
Technical Data
| Number of contacts | 3 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | 7/8″-16 UN |
| Number of contacts | 3 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting type | Rear mount |
| Mounting Thread B | 7/8″-16 UN |
| Voltage | 600 V |
| Current | 10 A |
| Protection class (When coupled) | IP67 |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, RoHS |
