Product RSF 57

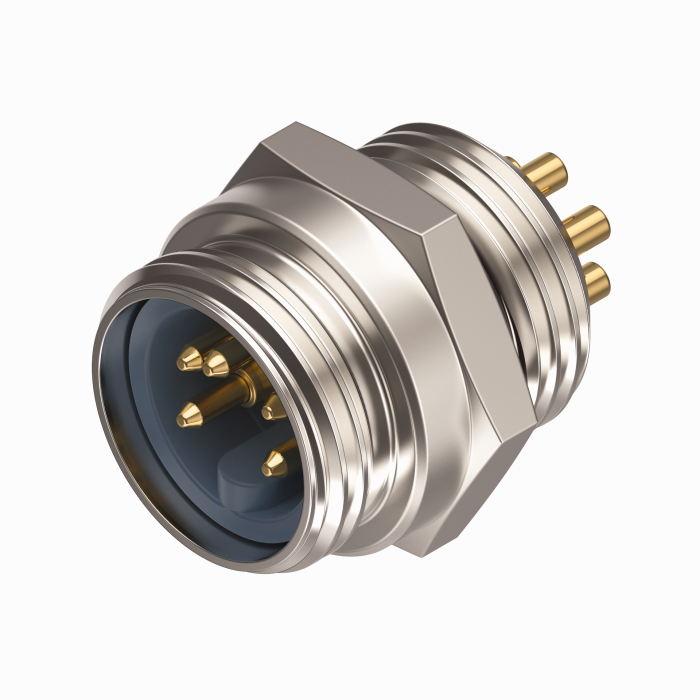

DeviceNet™ Receptacle
Front Mount

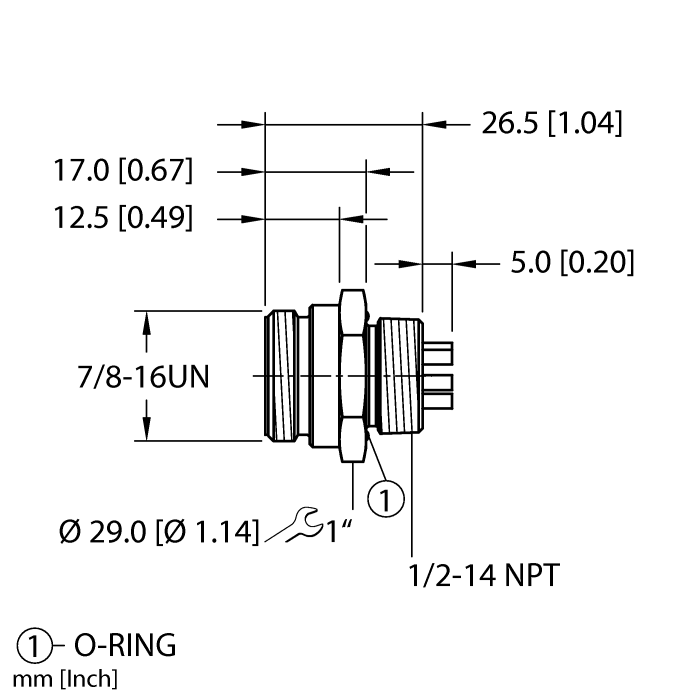

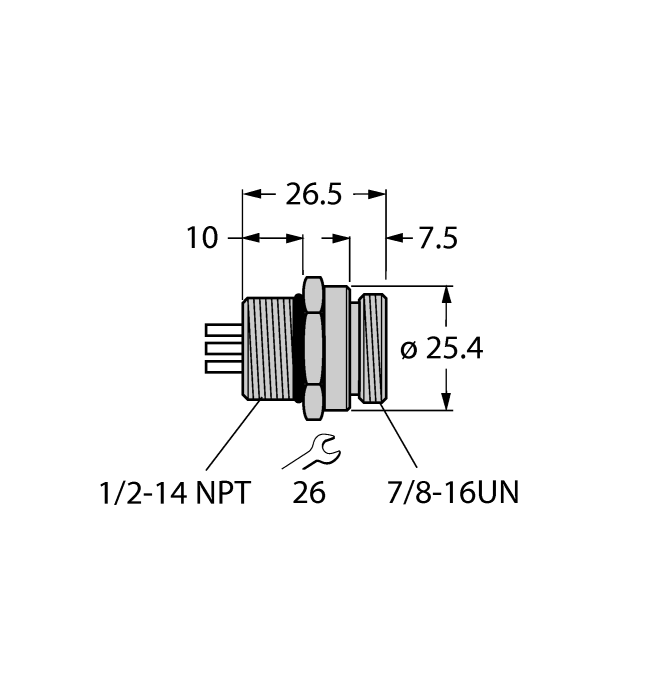

Ident. no.: U5220-0- 7/8″ minifast, Male, Receptacle, 5-pin
- Mounting thread: 1/2″-14 NPT
General data
| EAN | 4047101022957 |
| Customs tariff number | 8536694020 |
| Country of origin | MX |
| Weight | 49 g |
Technical Data
| Application | Data |
| Design | Single-ended |
| Connector A | Male, 7/8″-16 UN |
| Number of contacts | 5 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | 1/2″-14 NPSM |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Fieldbus Protocol | DeviceNet |
| Voltage | 300 V |
| Current | 9 A |
| Protection class (When coupled) | IP67, IP68, IP69, IP69K |
| Approvals | CSA C22.2 No. 182.3, CE, RoHS, UL Listed, UL 2238 |
