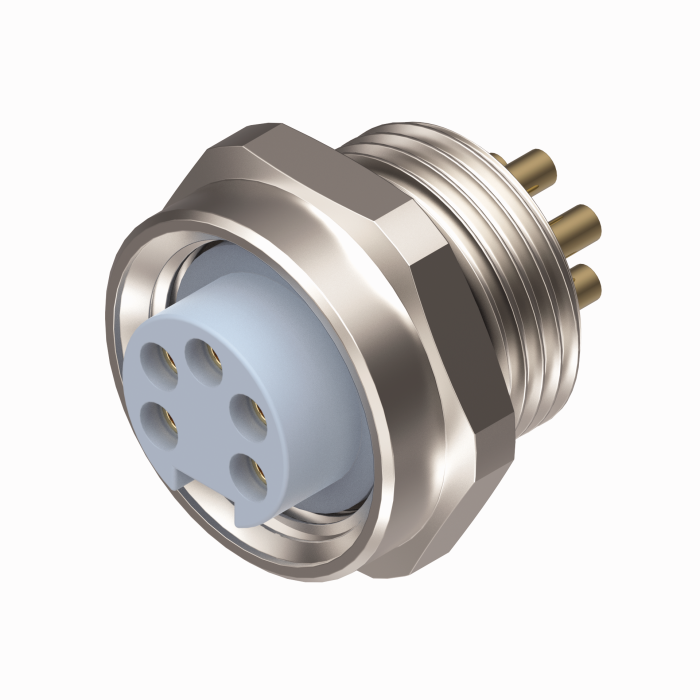

Product RKF 57
DeviceNet, 7/8″ Female Receptacle
Front Mount
Ident. no.: U5514-1- 7/8″ minifast, Female, Receptacle, 5-pin
- Mounting thread: 1/2″-14 NPSM
General data
| EAN | 4047101021783 |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 38.555 g |
Technical Data
| Application | Data |
| Connector A | Female, 7/8″-16 UN |
| Number of contacts | 5 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Front mount |
| Mounting thread | 1/2″-14 NPSM |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Fieldbus Protocol | DeviceNet, CANopen |
| Voltage | 300 V |
| Current | 9 A |
| Protection class (When coupled) | IP67, IP68, IP69, IP69K |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, RoHS |
