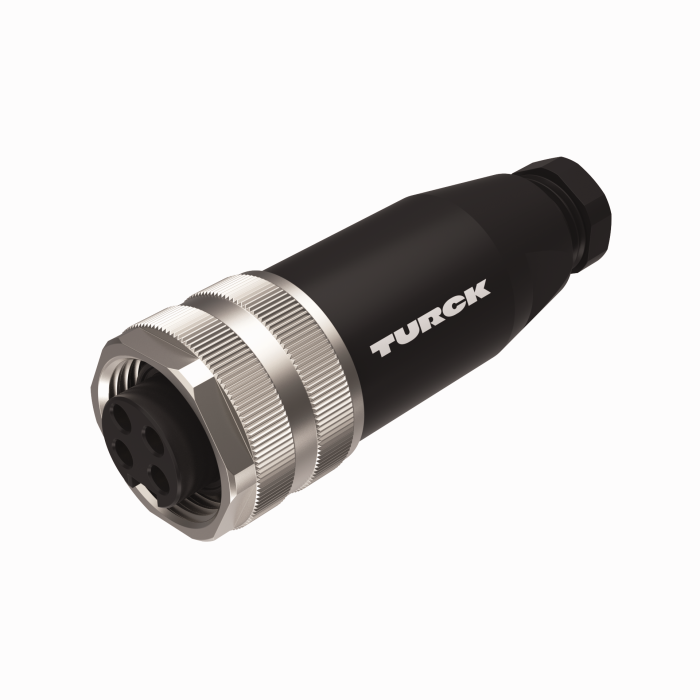

Product B 4151-0/9
Actuator and Sensor Field Wireable
7/8” Connection
Ident. no.: U6417- Screw terminal Wire Termination
- Plastic housing
- 7/8” Female, Straight, 5-pin
- Plastic Housing
Technical Data
| Application | Signal |
| Connector A | Female, 7/8″-16 UN, Straight |
| Number of contacts | 5 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PBT |
| Coupling nut/screw material | Zinc-Aluminum, CuZn, Nickel-plated |
| Acceptable cable diameter | 6…8 mm |
| Voltage | 600 V |
| Current | 9 A |
| Approvals | UL Recognized, RoHS |
