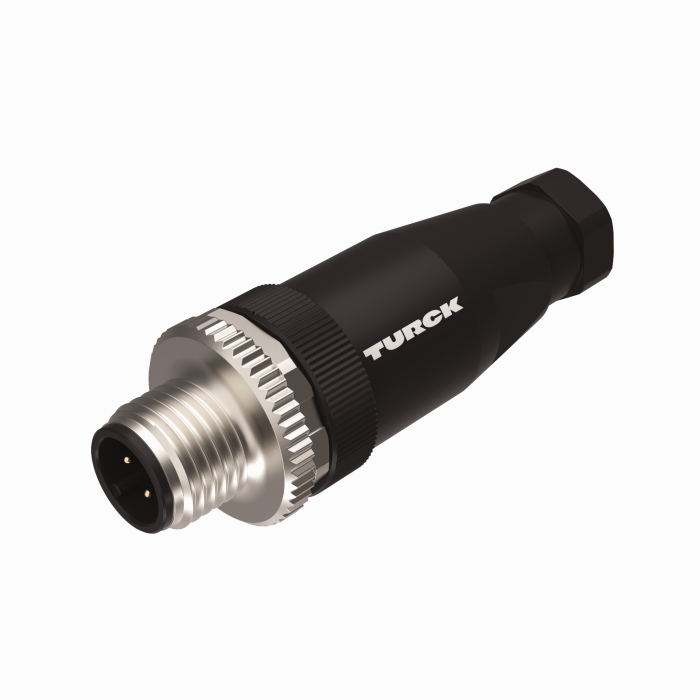

Product  BS 8141-0

Actuator and Sensor Field Wireable

M12 Connection

Ident. no.: U6550
    • Zinc-Aluminum coupling nut
    • UL approval
    • Screw terminal Wire Termination
    • Plastic housing
    • M12, Male, Straight, 4-pin
    • PG7 screw-in thread
    • Cable feedthrough 4.0…6.0 mm
#

Technical Data

Application Signal
Connector A Male, M12 × 1, Straight, A-code
Number of contacts 4
Connection mode Screw/clamp connection
Housing material Plastic, PA
Coupling nut/screw material Brass, CuZn, Nickel-plated
Acceptable cable diameter 4…6 mm
Core cross-section/Clamping ability 0.14…18 mm²
Voltage 250 V
Current 4 A
Approvals UL Recognized, RoHS
