Product B 5136-0
Actuator and Sensor Field Wireable

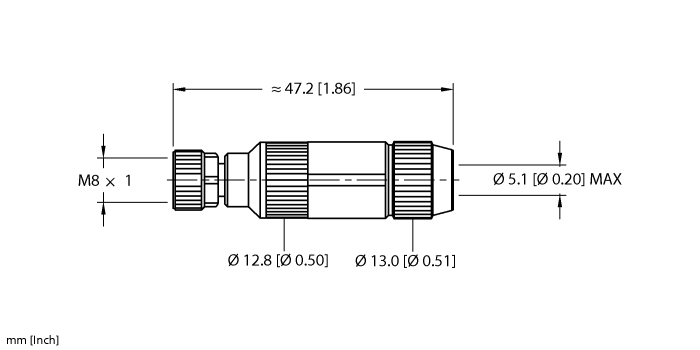

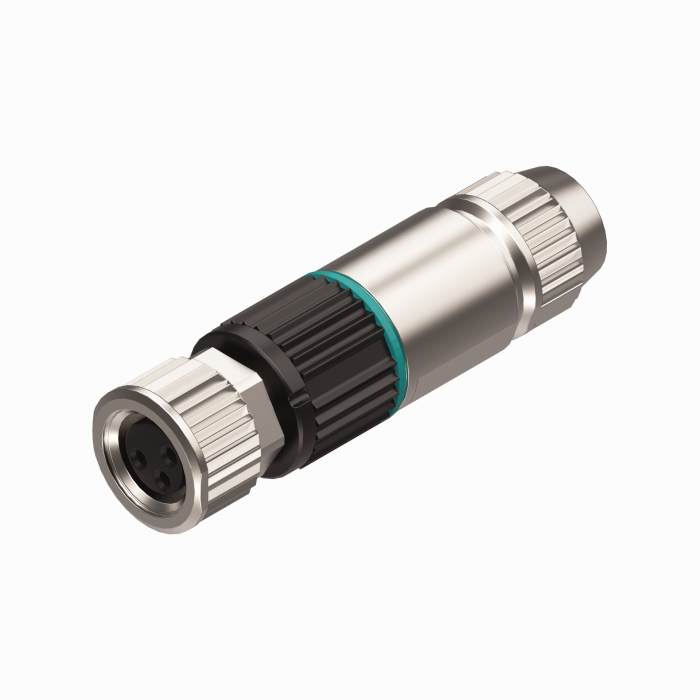

M8 × 1 Female Connector, Straight
Ident. no.: U6578-1- M8 female connector, straight, 3-pin
- Metal coupling nut
- Cable feedthrough 4.0…5.1 mm
- Penetration technology
- Protection class IP67
- 3 Pins
- Insulation displacement Wire Termination
- Plastic Housing
General data
| EAN | 4047101630992 |
| Customs tariff number | 85366990990 |
| Country of origin | US |
| Weight | 15.876 g |
Technical Data
| Application | Signal |
| Connector A | Female, M8 × 1, Straight |
| Number of contacts | 3 |
| Connection mode | Insulation displacement terminal |
| Housing material | Die-cast Zinc, PA |
| Coupling nut/screw material | Die-cast Zinc, CuZn, Nickel-plated |
| Acceptable cable diameter | 2.5…5.1 mm |
| Core cross-section/Clamping ability | 0.14…0.34 mm² |
| Voltage | 32 V |
| Current | 4 A |
| Approvals | RoHS |
