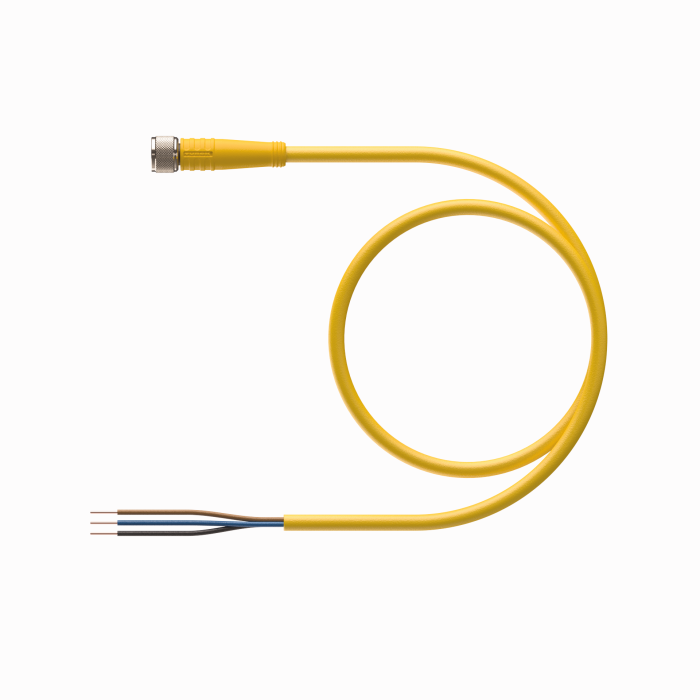

Product  PKG 3M-x

Actuator and Sensor Cable

Connection Cable

Ident. no.: 777000272

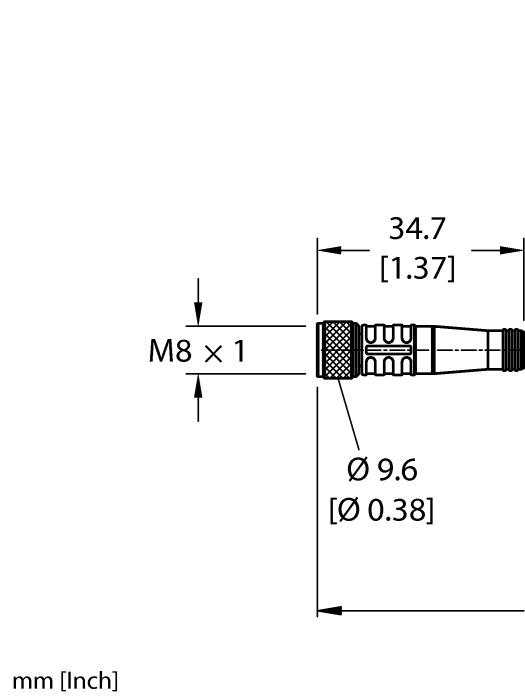

    • M8, Female, Straight, 3-pin
    • Threaded Connector
    • General Purpose Cable
    • Yellow PVC jacket, 3X24 AWG
    • -40 Cold Bend Rating
    • Flame Ratings: UL1061, CSA FT1
    • Flexlife® and C-Track Approved
#

General data

eCl@ss-Code (V5.1.4): 27250107 -/- Connection cable sensor-actuator

Technical Data

Application Signal
Design Single-ended
Number of contacts 3
Connector body Plastic, TPU, Yellow
Coupling nut Brass, CuZn, Nickel-plated
Voltage 125 V
Current 4 A
Cable diameter Ø  4.39 mm
Cable jacket PVC, Yellow
Number of Conductors 3
Protection class (When coupled) IP68
Approvals UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
