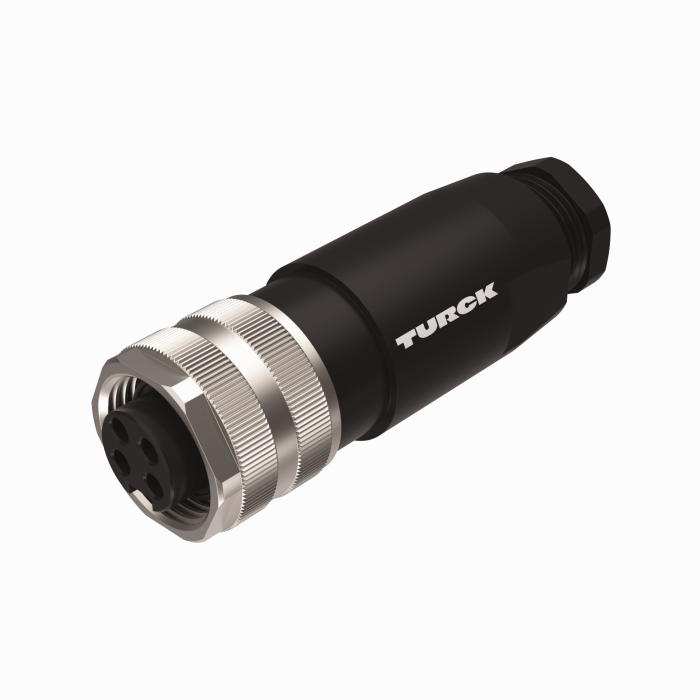

Product B 4141-0/13.5
Actuator and Sensor Field Wireable
7/8” Connection
Ident. no.: U6413- 7/8” Female, Straight, 4-pin
- Plastic Housing
- Screw terminal Wire Termination
General data
EAN | 4047101626704 |
Customs tariff number | 85366990990 |
Country of origin | DE |
Weight | 57 g |
Technical Data
Application | Signal |
Connector A | Female, 7/8″-16 UN, Straight |
Number of contacts | 4 |
Connection mode | Screw/clamp connection |
Housing material | Plastic, PBT |
Coupling nut/screw material | Die-cast Zinc, CuZn, Nickel-plated |
Acceptable cable diameter | 10…12 mm |
Voltage | 600 V |
Current | 9 A |
Approvals | UL Recognized, RoHS |
